Black Pearl®

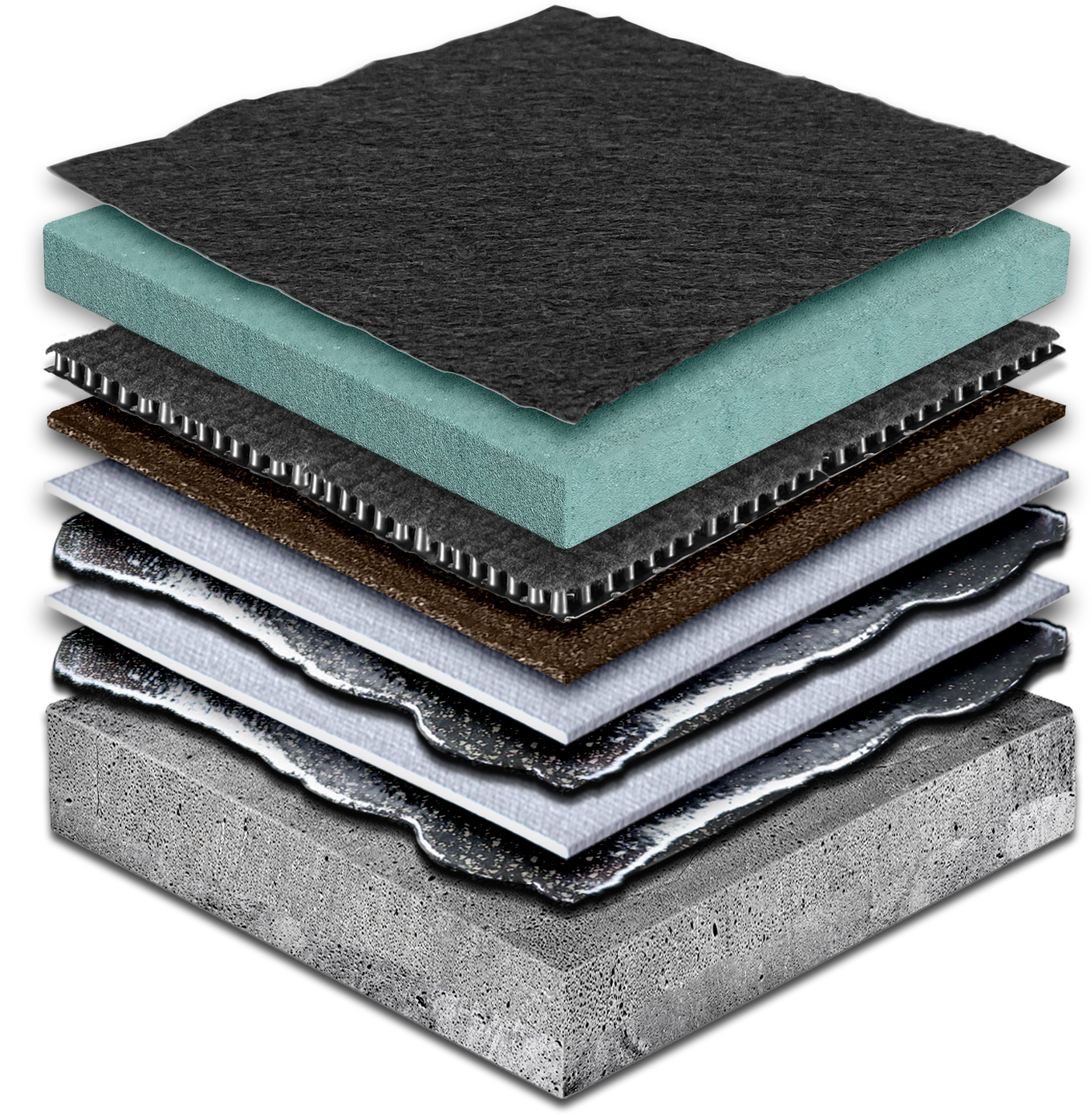

COLD MONOLITHIC SHEET APPLIED ROOFING & WATERPROOFING SYSTEM

  • TECHNOLOGY

    Butyl/Neoprene/SBS Modified

  • MATERIAL

    Unoxidized Asphalt

  • APPLICATION

    Cold Fluid Applied

  • INSTALLATION

    Two Component

  • MATERIAL

    Woven Polyester Fabric

  • REINFORCEMENT

    Black Pearl® Rubberized Formula

  • APPLICATION

    Synthesized Sheet Applied

  • THICKNESS

    55 Mils

DESCRIPTION

Unlike “weatherproofing”, a true waterproofing membrane will maintain its watertight integrity and prevent the passage of liquid under dynamic, static, continuous, or intermittent hydrostatic pressure.

Black Pearl® is a true waterproofing membrane.

Tenaciously adhered Black Pearl® waterproofing also prevents the passage of liquid water between the membrane and concrete substrates, even under 250 pounds per square inch of hydrostatic pressure. Black Pearl® also resists deterioration from common identified chemical exposure and resists root penetration. Offered with long term warranties assuring it will perform its waterproofing function, Black Pearl® is backed by the first name in American commercial moisture protection, The Barrett Company.

SURFACE PREPARATION

Check that all drains are properly installed, slightly depressed below the top of the roof deck and operative, all pipe and sleeve penetrations in place and properly secured, material storage and access areas determined and agreed to. All honeycomb, form tie holes or cones, air holes, bug holes and other defects must be parged/filled prior to membrane application and protrusions and high spots scraped down.



Any questions about concrete surface acceptability can be determined by evaluating the concrete surface using ASTM D-5295 and American Concrete Institute (ACI) ACI 117R-90, re-approved 2002, Section 4.5.6, Section 4.5.7, Detail FF 191.4 or FF 52.9 Guides. Fresh concrete that supports foot traffic is acceptable. Standing water on the concrete surface at the time of installation is not acceptable and needs to be removed. Water curing of concrete with impermeable covers is recommended when long-term curing is employed. All metal surfaces shall be cleaned of oils, paints, silicones and rust. Power wire brushing, shot blast, sand blasting, ice blasting and similar treatments can be used as required.



Form board release agents like No. 20 weight motor oil or diesel fuel are commonly used on concrete wall forms. Do not use or go over any release agent containing motor oil, fuel oil, animal fats or stearates. Surface applied wax based, and acrylic curing agents are not acceptable. Suspect areas must be shot blast, sand blast, ice blast or similarly treated prior to application of waterproofing to provide an acceptable surface. Frost-free surfaces are required.

CORNERS

Exterior and interior corners are installed with 20 mils of Black Pearl® Primer Adhesive applied to the substrate than embed a 10-inch-wide Black Pearl® Membrane, 4 inches on one side and 6 inches on the other side.



The second installed apply 20 mils of Black Pearl® Primer Adhesive onto the first layer of Black Pearl® Membrane embed the 10-inch-wide Black Pearl® Membrane (6-inch over the 4-inch side and 4 inch over the 6-inch side) squeegeed firmly into place without any voids or air pockets.



At parapet walls, membrane assembly should extend full height and to the outside edge of the parapet unless there is a thru-wall flashing or reglet. Do not cover up any weep holes or thru-wall flashings.

DRAINS

Clean drain sumps of any process oils, rust, or other contaminants with solvent and powered wire brush if required. Make sure drain is set below or at the drainage plane so there are no dams preventing free flow of water.

Install a 39-inch square sheet of Black Pearl® Membrane into 20 mils of Black Pearl® Primer Adhesive before running the ply sheets over the field of the deck. Install all waterproofing sheets over the drain and carefully cut out a small circular opening with slits carefully cut back to partially conform to the drain bowl shape.

Install clamping ring and cut back interior slit sheets to within 1 to 2 inches from the inside of the clamping ring. Do not allow any laps in clamping ring area. All drains require clamping rings.

PENETRATIONS

Cut a star pattern in the membrane slightly smaller than the outside diameter of the penetration. Coat the pipe/sleeve and surrounding base with 20 mils of Black Pearl® Primer Adhesive. The first layer of Black Pearl® Membrane should be installed a minimum of 8” above water level onto the pipe penetration and 8” beyond the base of the pipe penetration.



Apply 20 mils of Black Pearl® Primer Adhesive onto the first layer of the Black Pearl® Membrane, extending onto the pipe and substrate. Embed the second layer of Black Pearl® Membrane. Any exposed Black Pearl® Membrane will need to be covered with 20 mils of Black Pearl® Primer Adhesive embedded with Ram 306-ED UV. Install stainless steel draw-bands at the top of Black Pearl® Membrane system and then cap with KeeneSeal 100.



If detail of projections required Polymethyl Methacrylate, please refer to Barrett RamFlash PMMA Primer and Membrane technical data sheets and installation instructions.

JOINTS

CONTROL JOINTS

Control joints are not required for the Black Pearl system, however if installed they will need to be detailed. Apply 20 mils of BP PA a minimum of 6” to each side of the control joint, install a 12” wide strip of BP Membrane into BP PA. Install the full system over the control joint detail.

EXPANSION JOINTS

Expansion joints up to 2 ½” inches install backer rod in joint to leave a ½” depth, followed by KeeneSeal 100, flush with he top of the deck. Let sealant fully cure, apply 20 mils of BP PA 12” on both sides. Embed BP Membrane into BP PA flush to both sides. Install full system over the expansion joint detail.

WIDE EXPANSION JOINTS

Wide Expansion joints are installed by many different manufacturers such as Watson-Bowman-Acme, Emseal, Construction Specialties, Migutan and others.

*These assemblies require job-specific detail. Contact your local Barrett representative to assist you.

CHANGE OF PLANS

Install 20 mils of the BP•PA into the horizontal to vertical junction a minimum of 7” onto vertical and horizontal than install the BP Membrane a minimum of 6” onto the horizontal to vertical junction. Repeat the previous step with 20 mils of BP PA. Then install the complete system over the detailed area to a height that is 8” above water level and terminate appropriately.

If flashing requires Polymethyl Methacrylate, please refer to Barrett RamFlash PMMA Primer and Membrane technical data sheets and installation instructions.

MEMBRANE APPLICATION

Apply BP PA with straight edge squeegee at 20 mils onto the substrate with a rate of 80 sq feet per gallon. Adhesive must extend 1” beyond the BP Membrane. Allow it to dry to a tacky condition at 75F 50% Humidity requires approximately 20 minutes. Temperature and humidity will change the time requirements before installing the BP Membrane. Apply only as much adhesive as can be covered with sheet before the self-priming adhesive loses tack. Install BP Membrane into adhesive. Rub the sheet into the BP PA with a stiff broom, squeegee or hand roller. Lap all edge seams a minimum of 3 inches. Stagger all end laps a minimum of 6 inches.

Install the second lift of BP System by installing BP PA at 20 mils at a rate of 80 sq feet per gallon onto the first lift of BP Membrane. Allow to dry to tack state. Smoothly embed the second ply, offsetting the side laps of the first ply by half of a sheet’s width.

Install specified Ram protection course by applying 20 mils of BP PA at rate 80 sq feet per gallon onto the final lift of the BP System. Embed approved Ram Protection Course into the BP PA as required.

Note: All “Fishmouths” or wrinkles need to be cut out and detailed.

When all specified plies are installed it is time to run the flood test (ASTM D-5957), or EVM survey (ASTM D-7877). If any leakage or voids are detected, repair the suspect area and retest until there is no leakage of any kind.

SAFETY INFORMATION

RamTough waterproofing products offer no unusual health or safety risks for products of this nature. As with any roofing and waterproofing installation process, proper ventilation, clothing and eye protection is important.

For specific product information, contact the Barrett Company for a current Material Safety Data Sheets for any and all Barrett products. Obtain Material Safety Data Sheets from manufacturers whose materials may be used in conjunction with the Barrett waterproofing system. For installation safety information, consult the National Roofing Contractors Association (NRCA), the Occupational Safety and Health Administration (OSHA), and any other informed sources.

The user should not assume that all safety measures are indicated or that other measures may not be required.

DETAILS

SURFACE PREPARATION

Check that all drains are properly installed, slightly depressed below the top of the roof deck and operative, all pipe and sleeve penetrations in place and properly secured, material storage and access areas determined and agreed to. All honeycomb, form tie holes or cones, air holes, bug holes and other defects must be parged/filled prior to membrane application and protrusions and high spots scraped down. Any questions about concrete surface acceptability can be determined by evaluating the concrete surface using ASTM D-5295 and American Concrete Institute (ACI) ACI 117R-90, re-approved 2002, Section 4.5.6, Section 4.5.7, Detail FF 191.4 or FF 52.9 Guides. Fresh concrete that supports foot traffic is acceptable. Standing water on the concrete surface at the time of installation is not acceptable and needs to be removed. Water curing of concrete with impermeable covers is recommended when long-term curing is employed. All metal surfaces shall be cleaned of oils, paints, silicones and rust. Power wire brushing, shot blast, sand blasting, ice blasting and similar treatments can be used as required.

Form board release agents like No. 20 weight motor oil or diesel fuel are commonly used on concrete wall forms. Do not use or go over any release agent containing motor oil, fuel oil, animal fats or stearates. Surface applied wax based, and acrylic curing agents are not acceptable. Suspect areas must be shot blast, sand blast, ice blast or similarly treated prior to application of waterproofing to provide an acceptable surface. Frost-free surfaces are required.

CORNERS

Exterior and interior corners are installed with 20 mils of BP PA applied to the substrate than embed a 10-inch-wide BP Membrane, 4 inches on one side and 6 inches on the other side. The second installed apply 20 mils of BP PA onto the first layer of BP Membrane embed the 10-inch-wide BP Membrane 6-inch over the 4-inch side and 4 inch over the 6-inch side, squeegeed firmly into place without any voids or air pockets. At parapet walls, membrane assembly should extend full height and to the outside edge of the parapet unless there is a thru-wall flashing or reglet. Do not cover up any weep holes or thru-wall flashings.

DRAINS

Clean drain sumps of any process oils, rust or other contaminants with solvent and powered wire brush if required. Make sure drain is set below or at the drainage plane so there are no dams preventing free flow of water. Install a 39-inch square sheet of BP Membrane into 20 mils of BP PA before running the ply sheets over the field of the deck. Install all waterproofing sheets over the drain and carefully cut out a small circular opening with slits carefully cut back to partially conform to the drain bowl shape. Install clamping ring and cut back interior slit sheets to within 1 to 2 inches from the inside of the clamping ring. Do not allow any laps in clamping ring area. All drains require clamping rings.

PENETRATIONS

Cut a star pattern in the membrane slightly smaller than the outside diameter of the penetration. Coat the pipe/sleeve and surrounding base with 20 mils of BP PA. The first layer of BP Membrane should be installed a minimum of 8” above water level onto the pipe penetration and 8” beyond the base of the pipe penetration. Apply 20 mils of BP PA onto the fist layer of the BP Membrane extending onto the pipe and substrate. Embed the second layer of BP Membrane. Any exposed BP Membrane will need to be covered with 20 mils of BP PA with embedded with Ram 306-ED UV. Install stainless steel draw-bands at the top of BP Membrane system and then cap with KeeneSeal 100.

If detail of projections required Polymethyl Methacrylate, please refer to Barrett RamFlash PMMA Primer and Membrane technical data sheets and installation instructions.

JOINTS

CONTROL JOINTS

Control joints are not required for the Black Pearl system, however if installed they will need to be detailed. Apply 20 mils of BP PA a minimum of 6” to each side of the control joint, install a 12” wide strip of BP Membrane into BP PA. Install the full system over the control joint detail.



EXPANSION JOINTS

Expansion joints up to 2 ½” inches install backer rod in joint to leave a ½” depth, followed by KeeneSeal 100, flush with he top of the deck. Let sealant fully cure, apply 20 mils of BP PA 12” on both sides. Embed BP Membrane into BP PA flush to both sides. Install full system over the expansion joint detail.



WIDE EXPANSION JOINTS

Wide Expansion joints are installed by many different manufacturers such as Watson-Bowman-Acme, Emseal, Construction Specialties, Migutan and others.

*These assemblies require job-specific detail. Contact your local Barrett representative to assist you.

CHANGE OF PLANS

Install 20 mils of the BP•PA into the horizontal to vertical junction a minimum of 7” onto vertical and horizontal than install the BP Membrane a minimum of 6” onto the horizontal to vertical junction. Repeat the previous step with 20 mils of BP PA. Then install the complete system over the detailed area to a height that is 8” above water level and terminate appropriately.

If flashing requires Polymethyl Methacrylate, please refer to Barrett RamFlash PMMA Primer and Membrane technical data sheets and installation instructions.

MEMBRANE APPLICATION

Apply BP PA with straight edge squeegee at 20 mils onto the substrate with a rate of 80 sq feet per gallon. Adhesive must extend 1” beyond the BP Membrane. Allow it to dry to a tacky condition at 75F 50% Humidity requires approximately 20 minutes. Temperature and humidity will change the time requirements before installing the BP Membrane. Apply only as much adhesive as can be covered with sheet before the self-priming adhesive loses tack. Install BP Membrane into adhesive. Rub the sheet into the BP PA with a stiff broom, squeegee or hand roller. Lap all edge seams a minimum of 3 inches. Stagger all end laps a minimum of 6 inches.

Install the second lift of BP System by installing BP PA at 20 mils at a rate of 80 sq feet per gallon onto the first lift of BP Membrane. Allow to dry to tack state. Smoothly embed the second ply, offsetting the side laps of the first ply by half of a sheet’s width.

Install specified Ram protection course by applying 20 mils of BP PA at rate 80 sq feet per gallon onto the final lift of the BP System. Embed approved Ram Protection Course into the BP PA as required.

Note: All “Fishmouths” or wrinkles need to be cut out and detailed.

When all specified plies are installed it is time to run the flood test (ASTM D-5957), or EVM survey (ASTM D-7877). If any leakage or voids are detected, repair the suspect area and retest until there is no leakage of any kind.

SAFETY INFORMATION

RamTough waterproofing products offer no unusual health or safety risks for products of this nature. As with any roofing and waterproofing installation process, proper ventilation, clothing and eye protection is important.

For specific product information, contact the Barrett Company for a current Material Safety Data Sheets for any and all Barrett products. Obtain Material Safety Data Sheets from manufacturers whose materials may be used in conjunction with the Barrett waterproofing system. For installation safety information, consult the National Roofing Contractors Association (NRCA), the Occupational Safety and Health Administration (OSHA), and any other informed sources.

The user should not assume that all safety measures are indicated or that other measures may not be required.

DETAILS

2 Ply System (ASTM D-6769)

PROPERTIESMEASUREMENTTEST METHOD
Breaking Strength (lbf/in)89 MD (70 XD)ASTM D-146
Elongation (%)46 MD (64 XD)ASTM D-146
Puncture Strength (lbf)202ASTM E-154 - S10
Tear Strength (lbf)25 MD (23 XD)ASTM D-1004
Hydrostatic Resistance (Mullen)250 psiASTM D-751, Procedure A
Water Vapor Permeance (desiccant)0.04 permsASTM E-96
*Bonded Pull (lbs/sq ft)200 lbs/sq ftASTM C-836
Low Temp Crack Bridging15° F (Pass)ASTM C-1305
Extensibility After Heat AgingPassASTM C-1522
Adhesion Strength (CMV)1.5 lbf/inASTM C-836
Resistance to Water (Visual)PassASTM D-2939 (Sec. 15)
Remain In-Place During Application (Visual)PassASTM C-836
Wind Uplift200 lbs/sq ftFM 4474
Sheet Ductility58° FTAS 114D

Black Pearl® Primer Adhesive

PROPERTIESMEASUREMENTTEST METHOD
Solids Content (%)77%ASTM C-1250
Softening Point (°F)220°FASTM D-36
Penetration (100g @77°F)220 dmmASTM ED-5
VOC (Rule 66 Naptha)<230 g/LEPA
