20 Mil Root Barrier

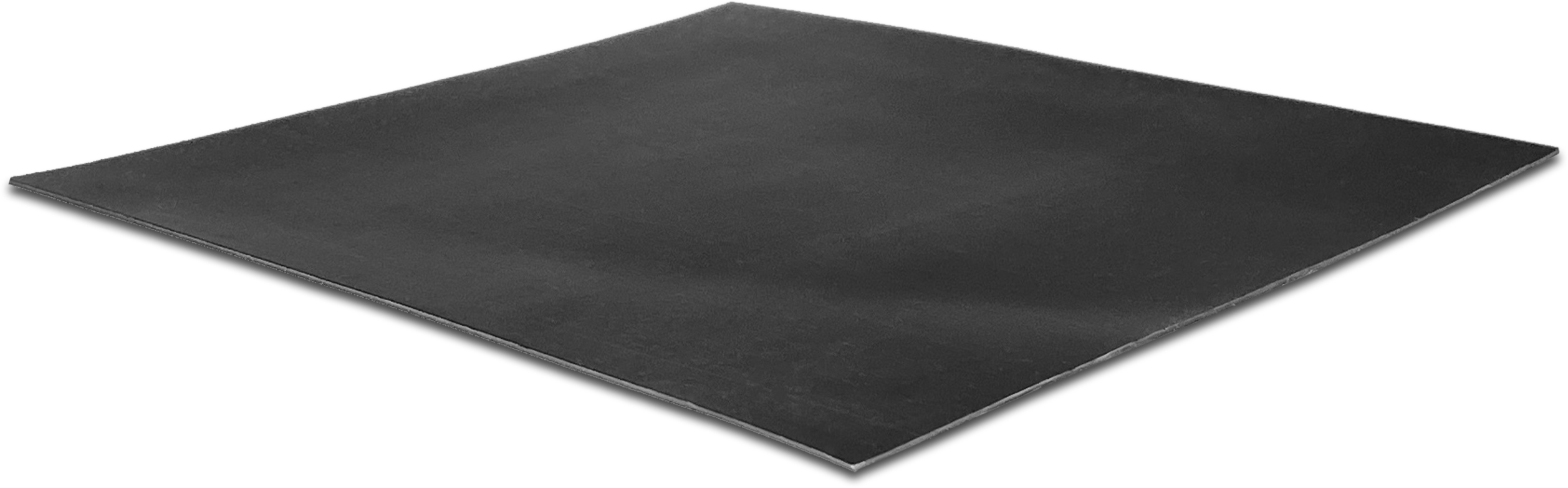

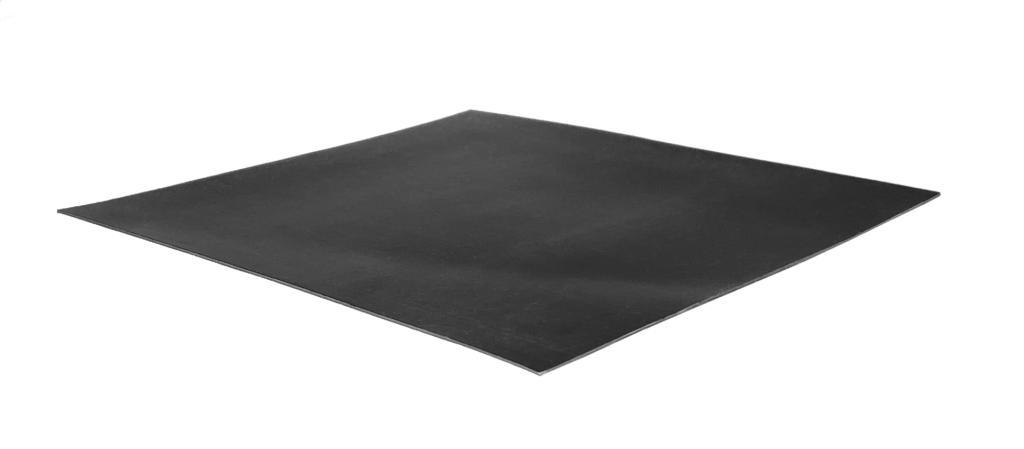

RAM RB 20 is a 20-mil polymeric sheet, effectively arrests root penetration and redirect roots to a horizontal growth plane, helping lock in vegetation and increasing resistance to wind uplift forces.

RAM RB 20 is a 20-mil polymeric sheet, effectively arrests root penetration and redirect roots to a horizontal growth plane, helping lock in vegetation and increasing resistance to wind uplift forces.

USES

  • Ram RB 20 direct roots into a horizontal plane away from waterproofing, prevent root damage to the waterproofing membrane and prevent root intrusion into Green Roof and planters application.

Application Guidelines

  • All laps should be a minimum of 12 inches. Turn up
    a minimum of 4 inches above finish elevation line at perimeters
    and projections and temporarily tape to the walls. Tape all
    seams with Barrett Ram RB 25 Seam Tape. Repair punctures
    and any other damages before installing a drainage mat.

Coverage: 1,266 sq. ft.
