Cold Applied Built-Up Waterproofing Systems

Black Pearl® (BP) Waterproofing Systems has the unique ability to be applied to green and damp concrete. It is also compatible with asphaltic products enabling restoration of a project that was originally asphaltic based and ties to hot rubberized asphalt. It can be applied at temperatures as low as 0ºF.

Black Pearl® (BP) Waterproofing Systems has the unique ability to be applied to green and damp concrete. It is also
compatible with asphaltic products, enabling the restoration of projects that were originally asphaltic based and ties to hot rubberized asphalt. It can be applied at temperatures as low as 0ºF.

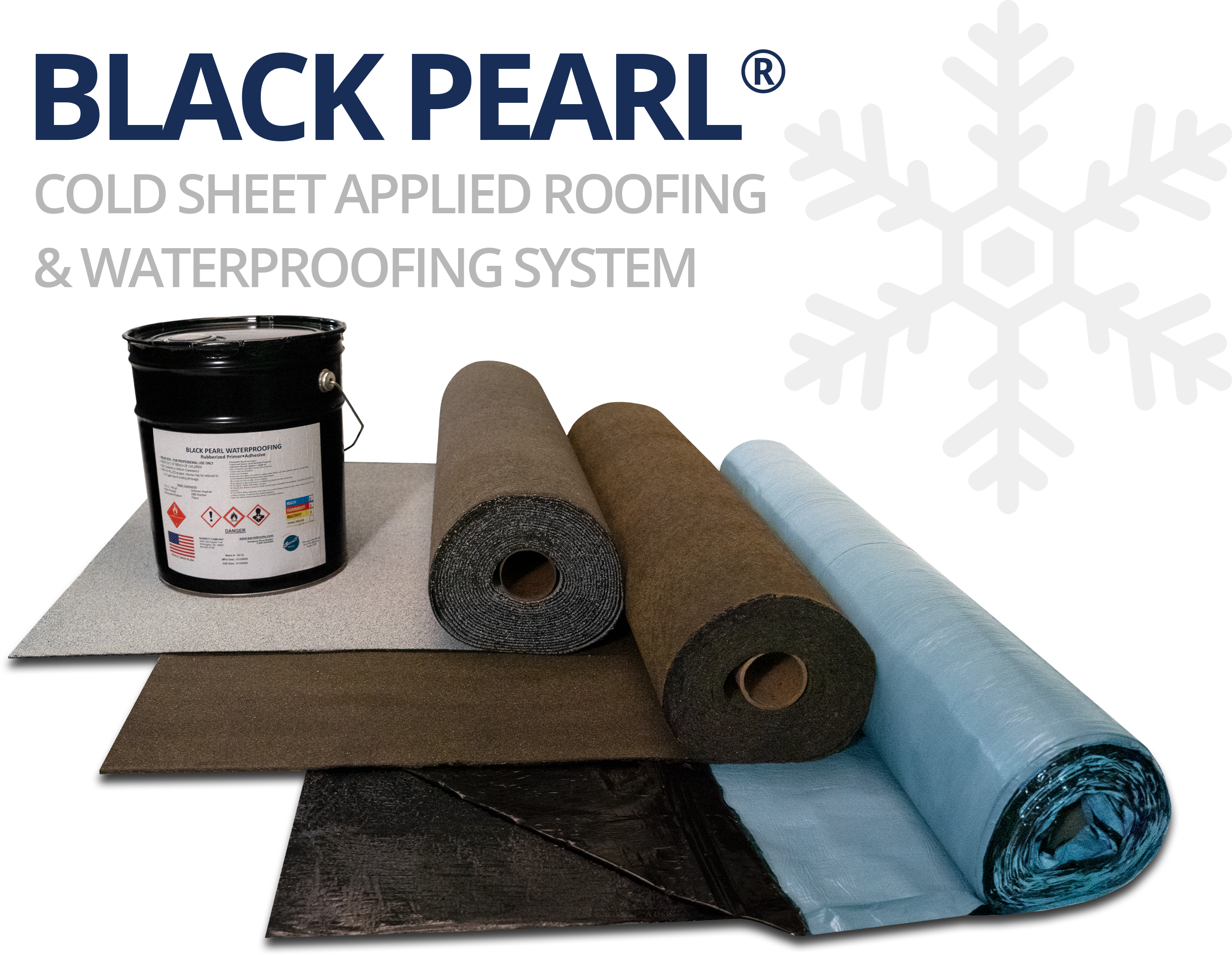

Black Pearl Waterproofing System is composed of two primary products, the Black Pearl Primer Adhesive (BPPA) and Black Pearl Waterproofing Membrane (BPWM). These components are based upon the same core formula of select, unoxidized asphalt cement base, butyl rubber, styrene isoprene styrene (SIS), neoprene rubber, styrene-butadiene-styrene rubber (SBS), carbon black, fillers, plasticizers and curing agents. The Black Pearl Primer Adhesive also has an aliphatic solvent that is within acceptable OSHA and EPA current regulations.

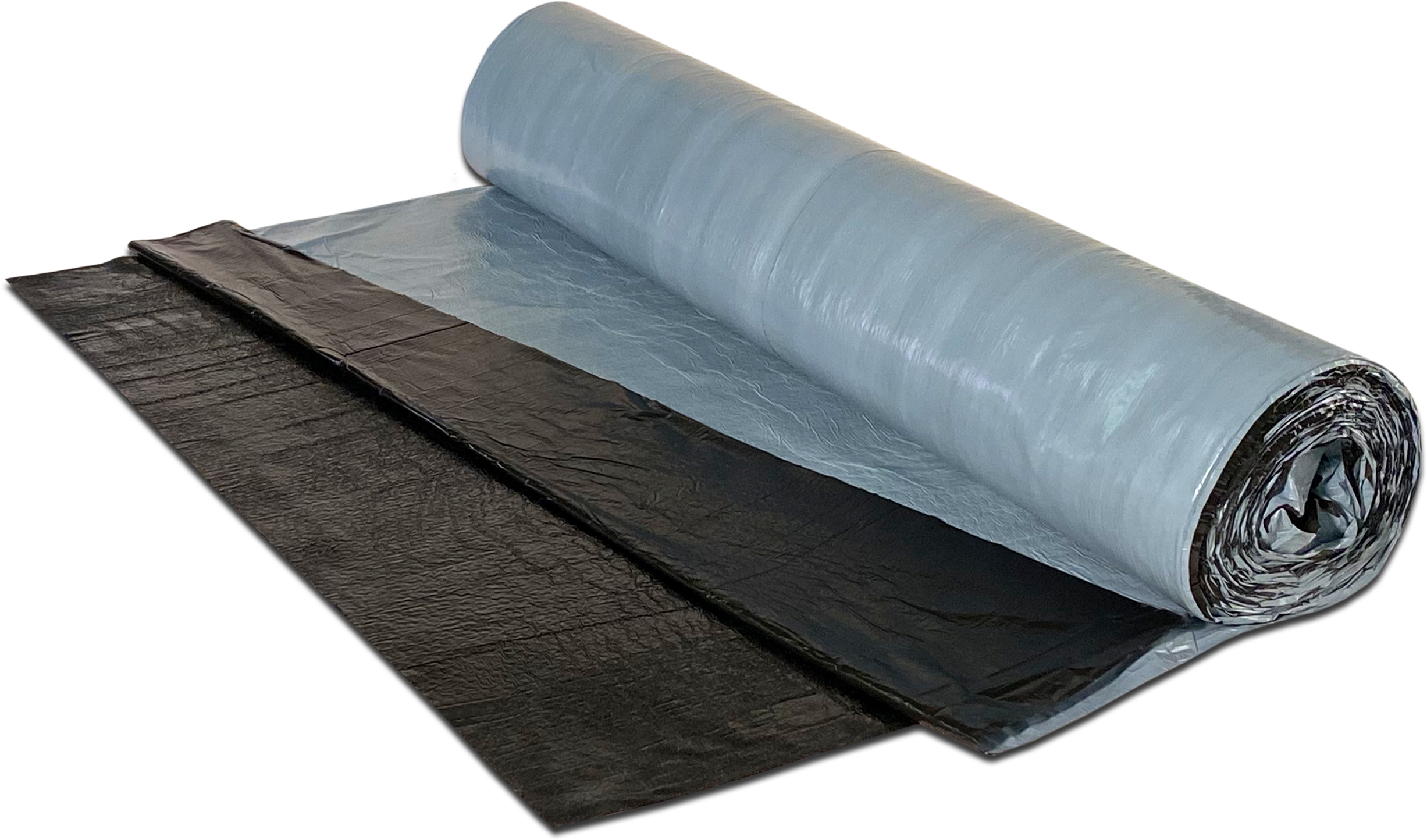

Black Pearl Sheet Membrane is a 55 mil woven polyester fabric providing extra tensile strength and stability. This fabric is impregnated and coated with the Black Pearl rubberized formula. The Black Pearl Primer Adhesive chemically fuses the system elements together into a monolithic waterproof membrane.



USES:

  • New and restoration applications
  • Plaza deck waterproofing systems
  • Protected membrane roofs (IRMA®)*
  • Green Roof Roofscapes®
  • Vertical waterproofing applications
  • Parking decks, bridges, water treatment plants
  • Between slab waterproofing membrane systems



COVERAGE:

  • BP Membrane: 39.5″x66′ = 217 sq. ft.
  • BP Primer Adhesive: 80 sq. ft. per gallon @ 375 sq. ft. per unit



PACKAGING:

  • BP Membrane
    • 5-gallon pails (4.75 gallons per pail)
    • 42 lbs per pail
    • 36 pails per pallet
  • BP Primer Adhesive
    • 39.5”x66’
    • 53 lbs per roll
    • 20 rolls per pallet
