The roof is often a forgotten element on most buildings. When designed and built as a multi-functional element, a roof space can be made cost effective, provide significant environmental contributions, and create aesthetically pleasing, versatile, and usable outdoor spaces.
Roofscapes® are sustainable roofing & landscaping systems that offer the owner and society many environmental benefits, low lifecycle costs, and government incentives. These assemblies are designed to turn unused space into a park-like garden setting with a keen sensitivity to environmental enhancement.
Combining our 90+ years of roofing & waterproofing expertise with retained horticultural technology, Barrett has partnered with the most prominent suppliers of pavers, vegetation, growing media, and more to offer building owners a top-to-bottom solution for their ideal green roof.
Proven Performance

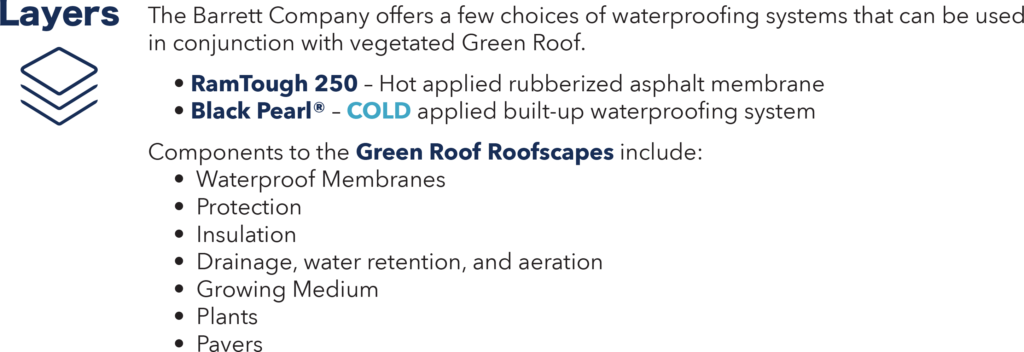

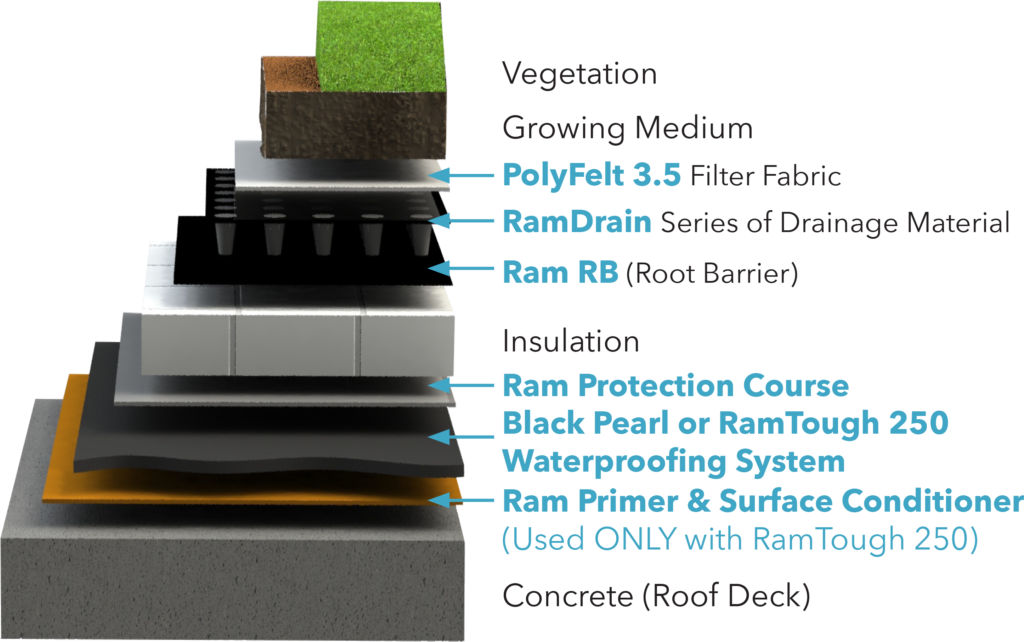

Barrett Company works with our Approved Contractors to provide two time-proven waterproofing systems that form the basis for moisture protection in our Roofscapes assemblies, Ram Tough 250 and Black Pearl Waterproofing. Each system utilizes a reinforced fluid-applied rubberized asphalt membrane.
Custom Solutions
Because we are not tied to only one approach of vegetative system, building owners and specifiers can choose among the options that will best suit their individual needs and budget.
Single Source Warranties
We offer complete assemblies with up to a 25-year single source labor and materials warranty, covering waterproofing, thermal performance, overburden removal, concrete paver warranty and renewable vegetation warranties.
ROOFSCAPES® SYSTEMS
Roofscapes® Systems are comprised of two distinct yet complementary approaches to maximizing rooftop and structural deck performance.

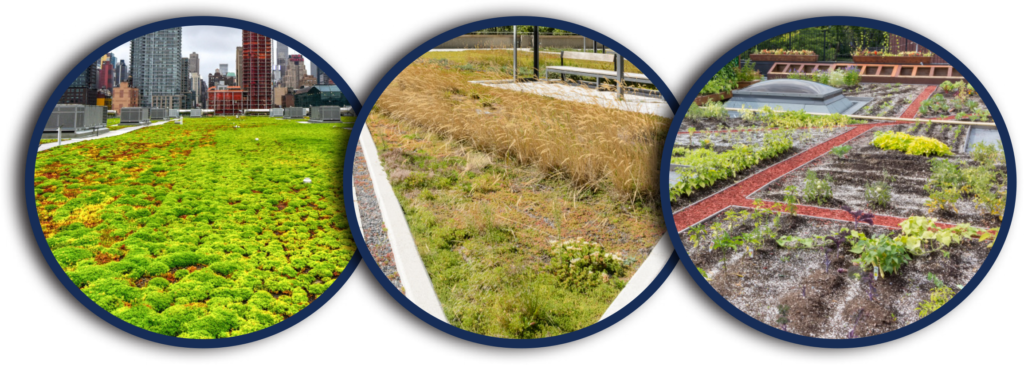

Terra-SCAPES™ systems are engineered for living, vegetative environments, ranging from lightweight extensive green roofs to intensive landscapes and urban agriculture. These assemblies deliver environmental benefits such as stormwater retention, improved insulation, reduced heat island effect, and enhanced aesthetics.
Examples of Terra-SCAPES™ assemblies include:
- Intensive
- Extensive
- Lawn
- Sloped
- Urban Agriculture
- Modular
Plaza-SCAPES™ systems are designed for hardscape and amenity-driven applications—such as roof terraces, paver decks, and occupied plazas—where durability, accessibility, and architectural finish are key. These assemblies protect the underlying waterproofing while supporting pedestrian traffic, furnishings, and active use, ultimately turning rooftops into functional, revenue-generating spaces.
Examples of Plaza-SCAPES™ assemblies include:

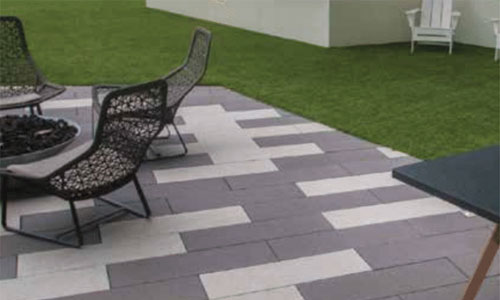

- Roof Terrace
- Amenity Deck
- Paver & Pedestal
- PMR / IRMA®
- Planter Box
ROOFSCAPES® ASSEMBLIES

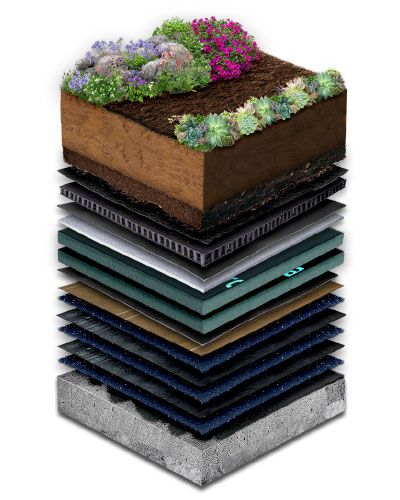

Intensive
8” to 24” + of Growing Medium
Larger plants, shrubs, small trees

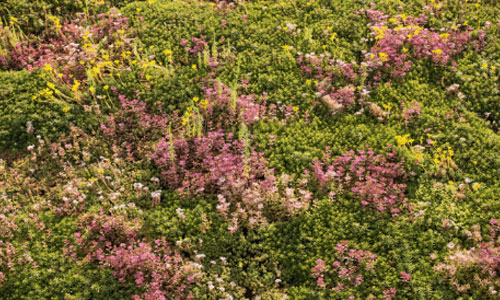

Sedum Carpet Standard

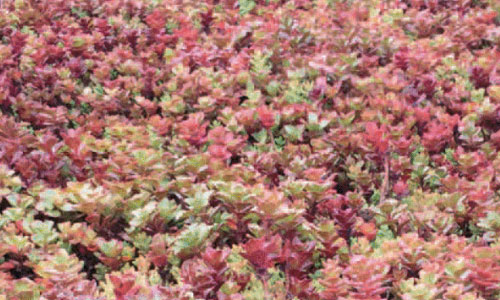

Sedum Carpet Maroon

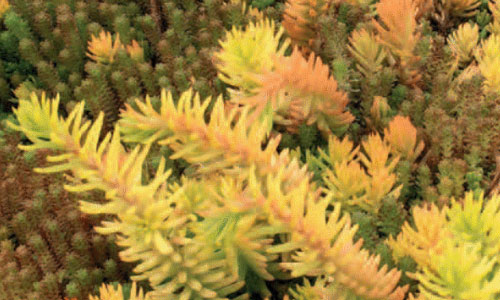

Sedum Carpet Sunray

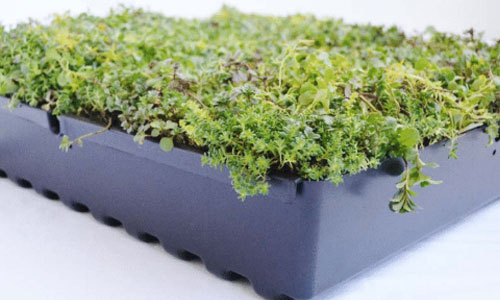

Green Roof Tray

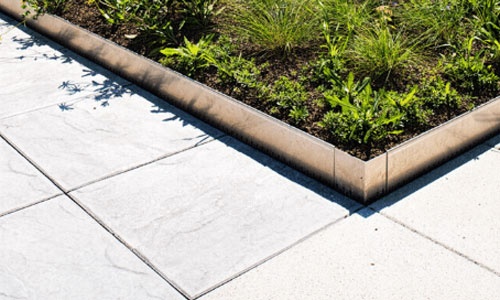

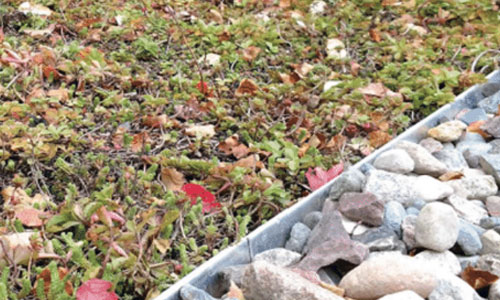

Roofscapes Edge
Roofscapes Edge+

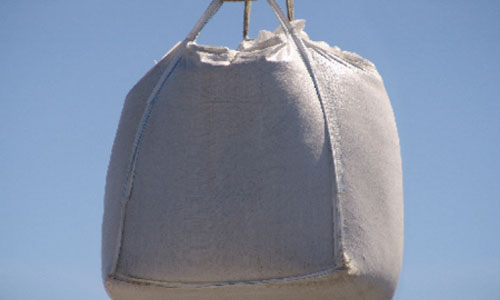

Intensive MediaIntensive Media
Polyfelt Ex15Polyfelt Ex15

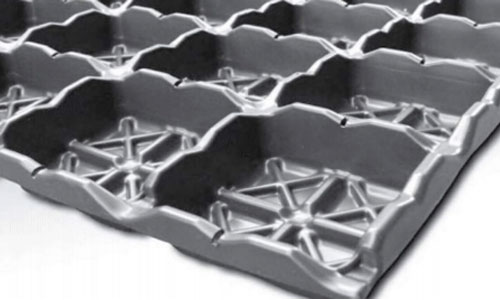

RNDRND 2.4
Rb 30RB-30
DuPontDuPont Roofmate (40PSI)
DuPont Plazamate (60 PSI

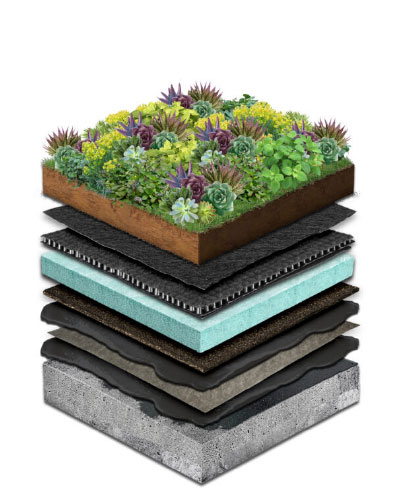

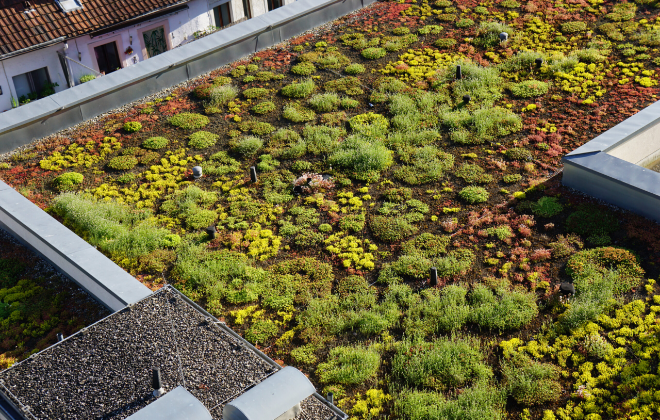

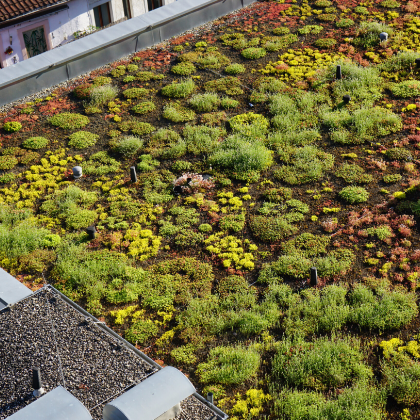

Extensive
Less 6" of growing medium
Small, hardly plants (sedum)
Sedum Carpet Standard
Sedum Carpet Maroon
Sedum Carpet Sunray
Green Roof Tray
Roofscapes Edge
Roofscapes Edge+

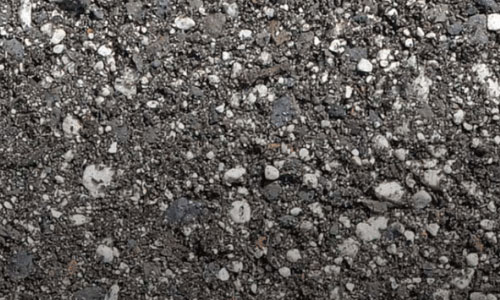

Marker 3Extensive Media
Marker 4Polyfelt EX9
Marker 5DuPont Roofmate (40PSI)
DuPont Plazamate (60 PSI
RB-30

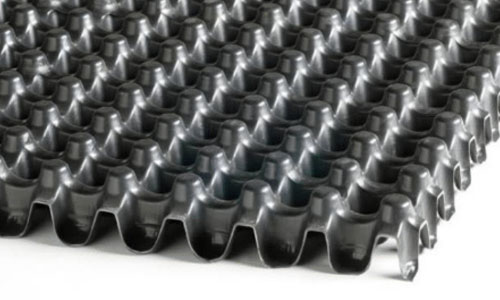

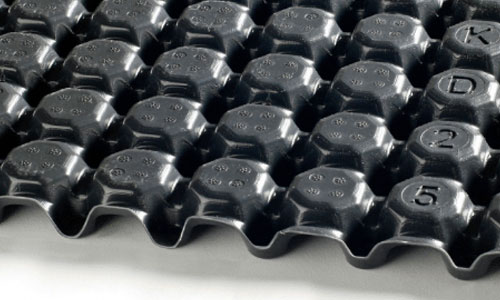

Marker 7RND 1.0

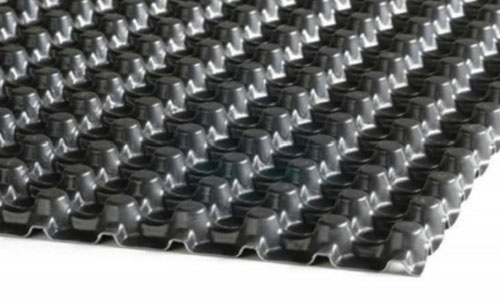

RND 1.0 HS

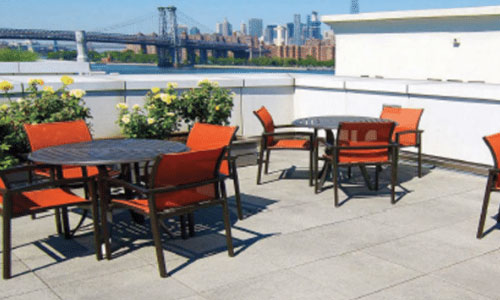

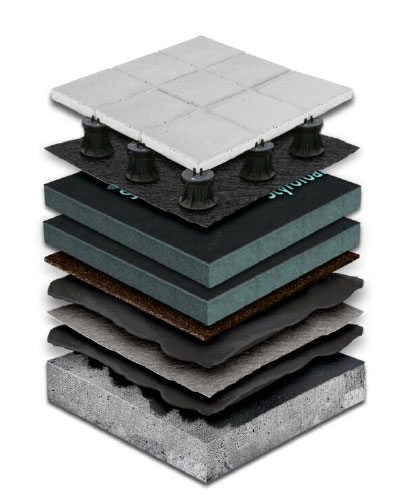

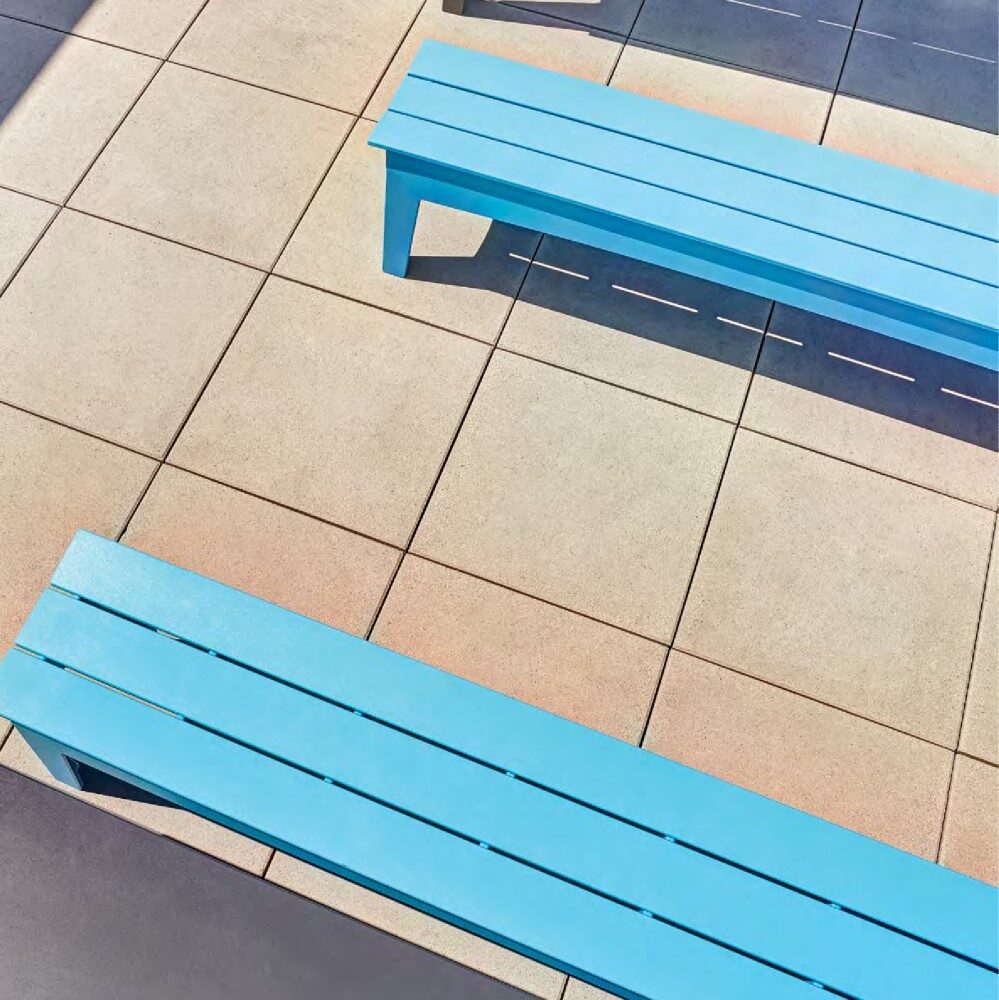

Paver Assembly
Sturdy pavers support
Weather proof under extreme conditions

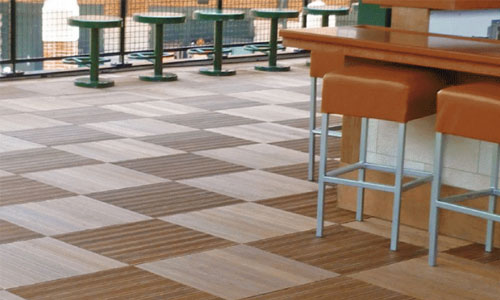

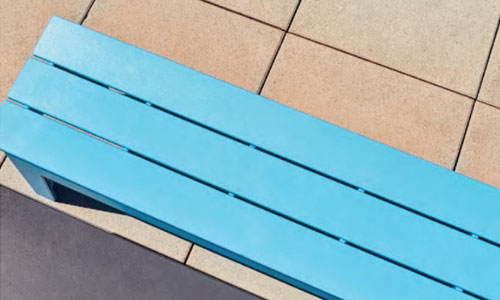

Pavers

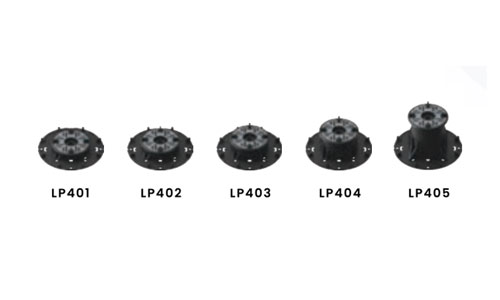

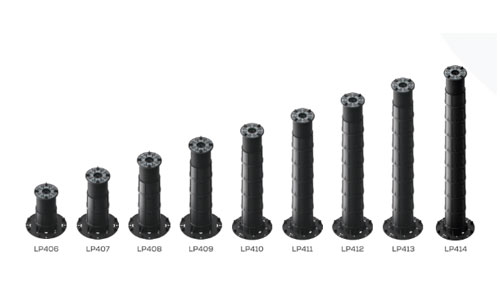

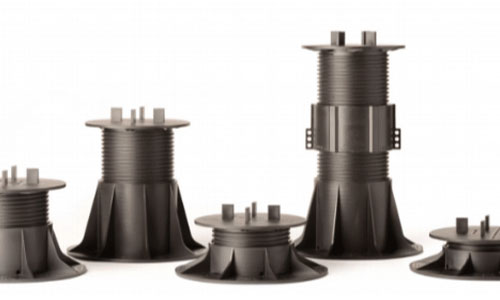

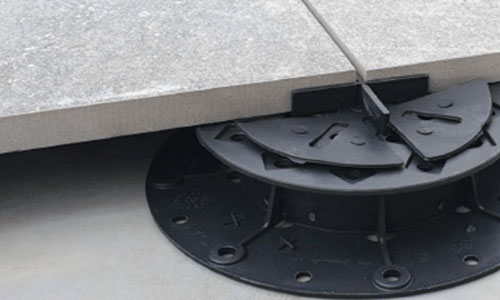

Marker 2LevelPro Pedestal
Marker 3DuPont Roofmate (40PSI)
DuPont Plazamate (60 PSI)
Featured Roofscapes® System Products
Fabrics

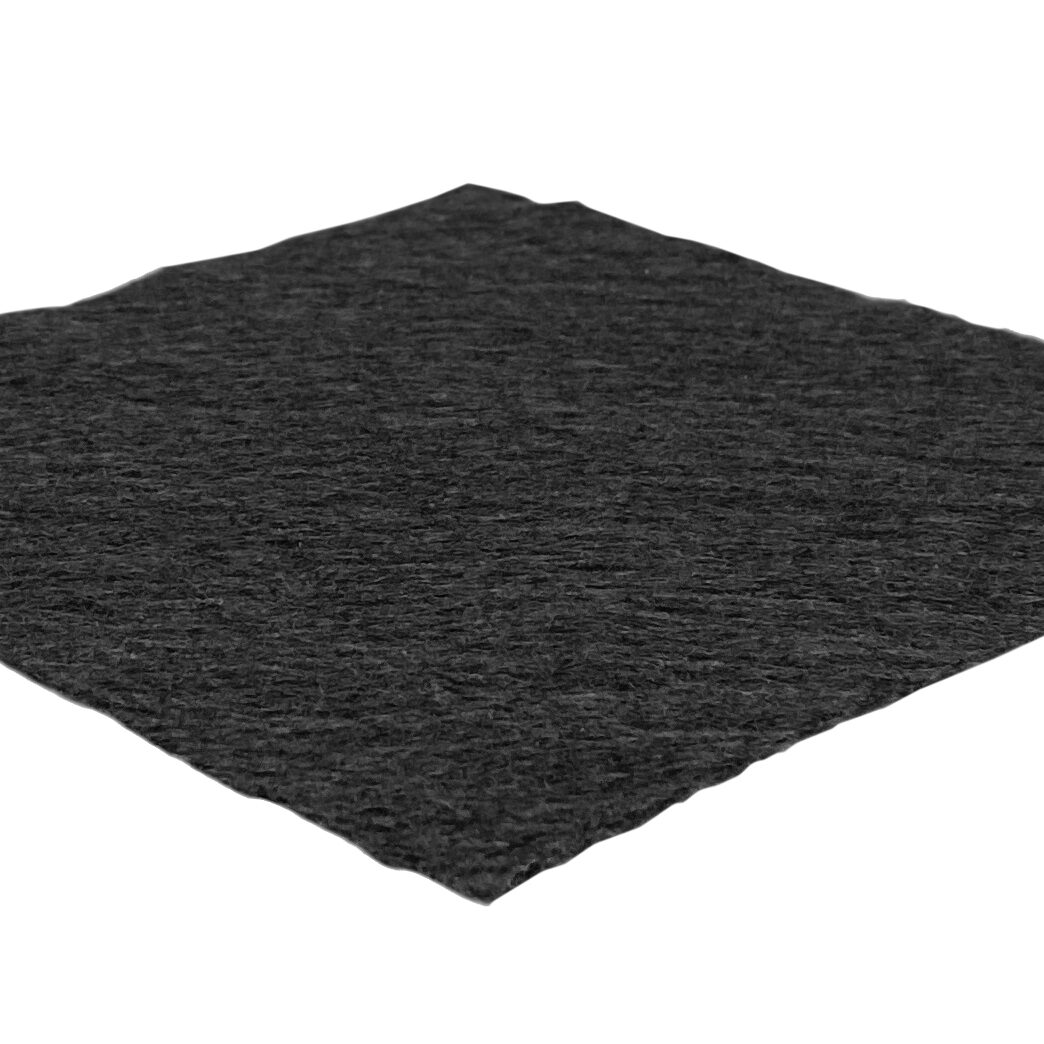

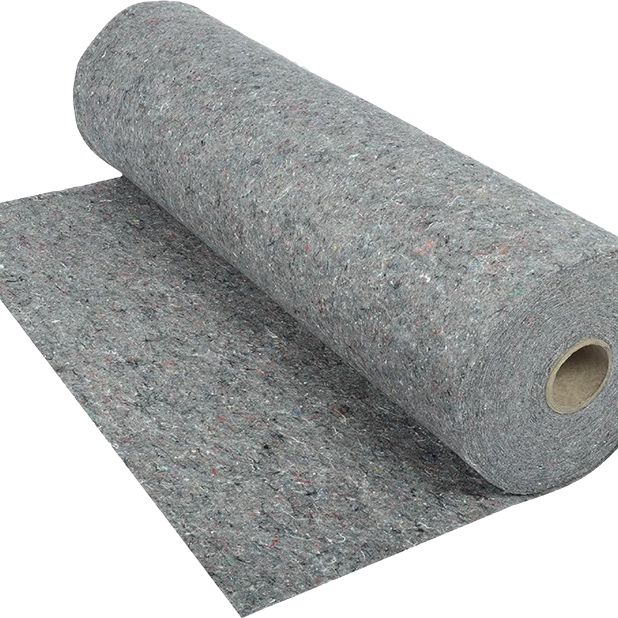

Terra-FILTER™ Filter Fabric
Lightweight Spunbond Polyester Protective Filter Fabric (3.5 oz)

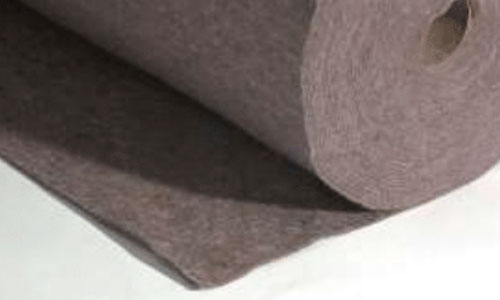

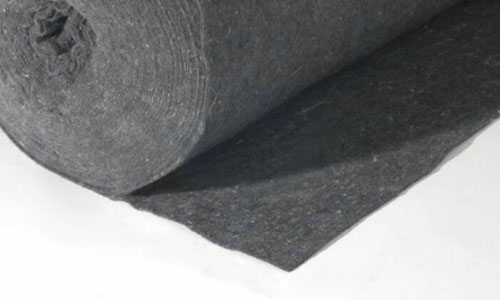

Terra-FILTER™ Protective Fleece
100% Recycled Polypropylene Polyester Geotextile Protective Fleece Fabric

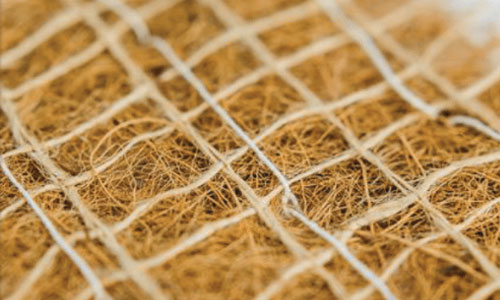

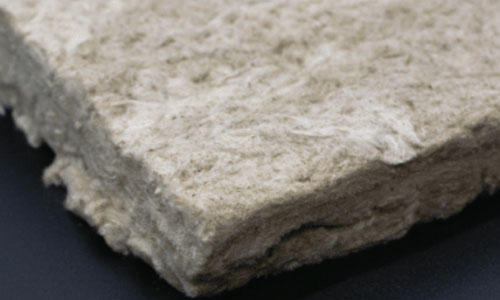

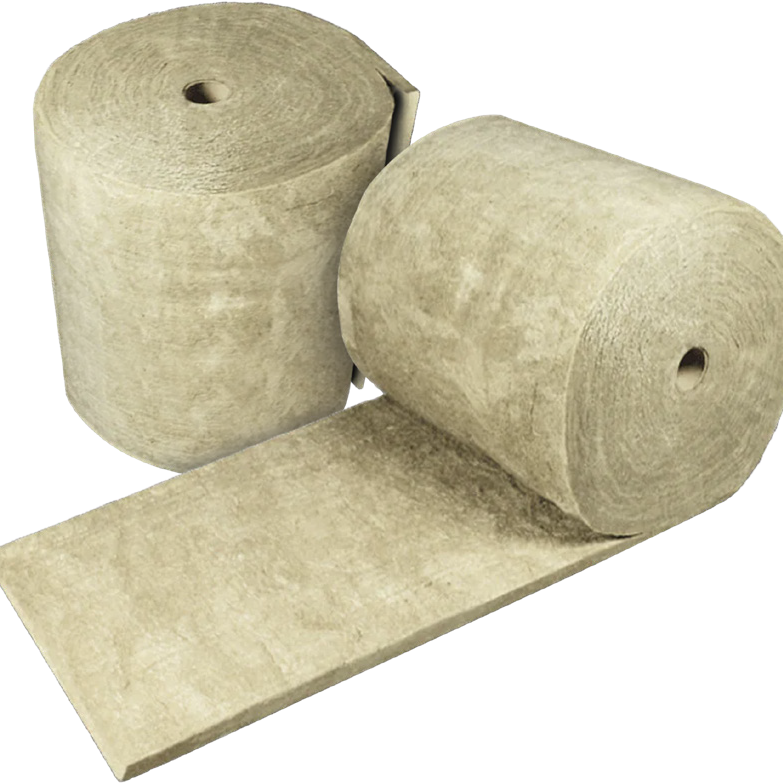

Roofscapes® Mineral Wool
Lightweight Needled Mineral Wool Mat
GEOTEXTILE FABRICS
Preformed Drainage & Retention

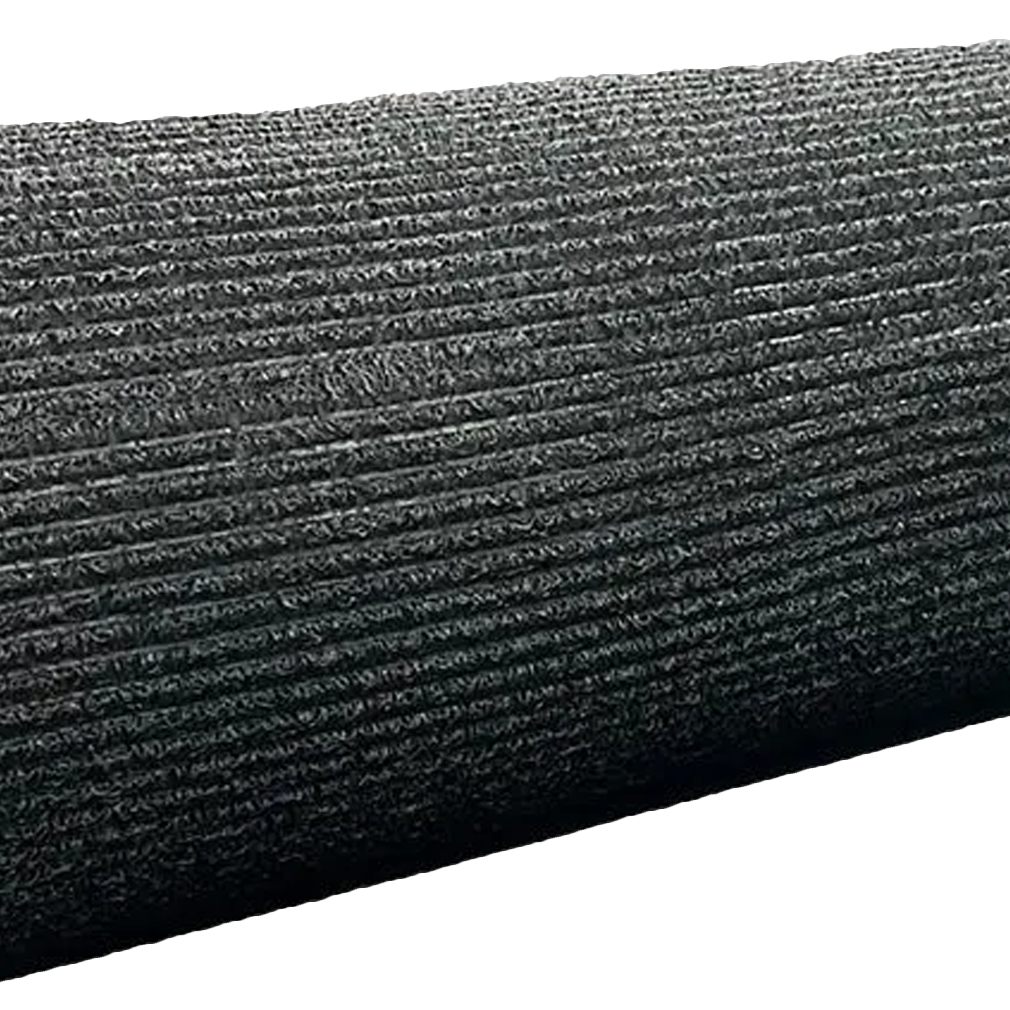

Terra-DRAIN™ EN-6
Prefabricated Entangled Net Composite Drainage Mat (0.25")

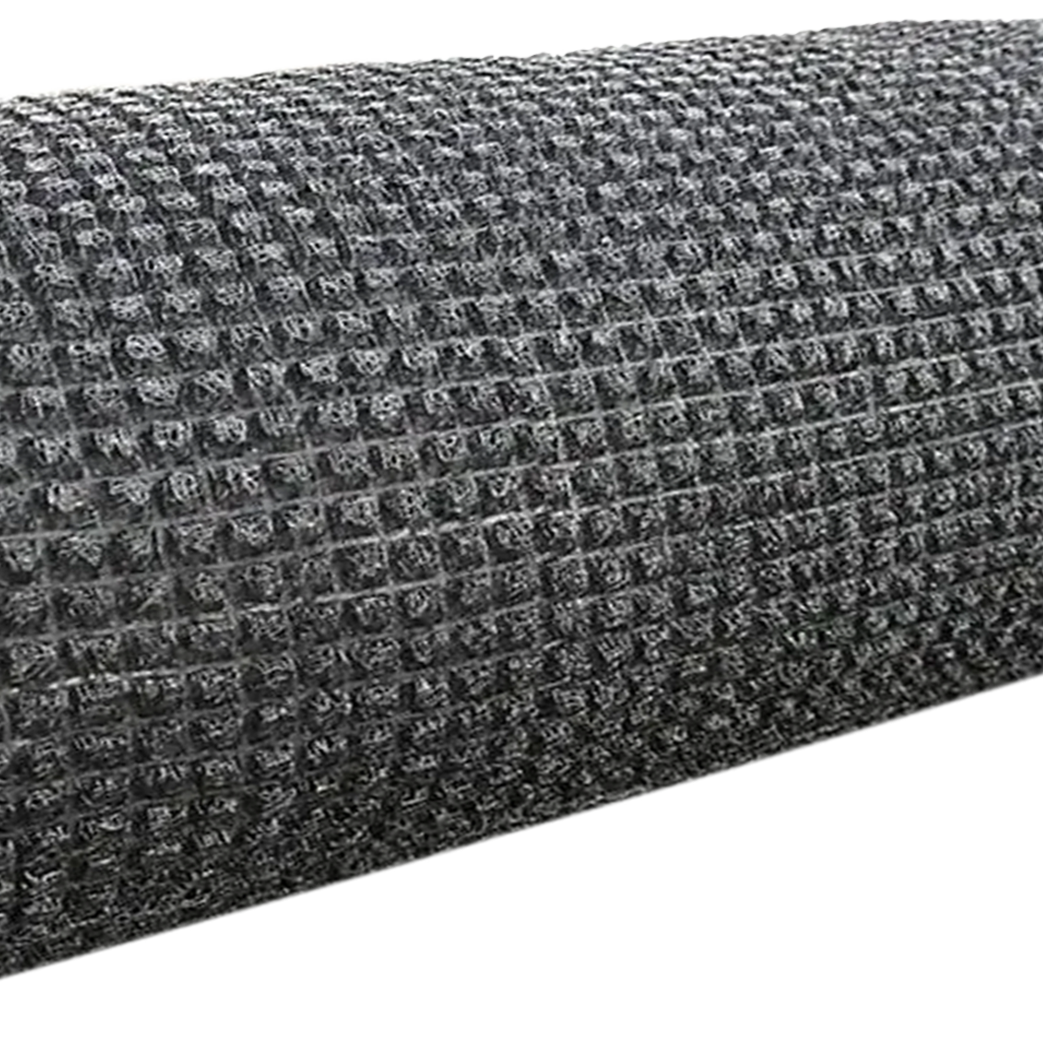

Terra-DRAIN™ EN-12
Prefabricated Entangled Net Composite Drainage Mat (0.45")

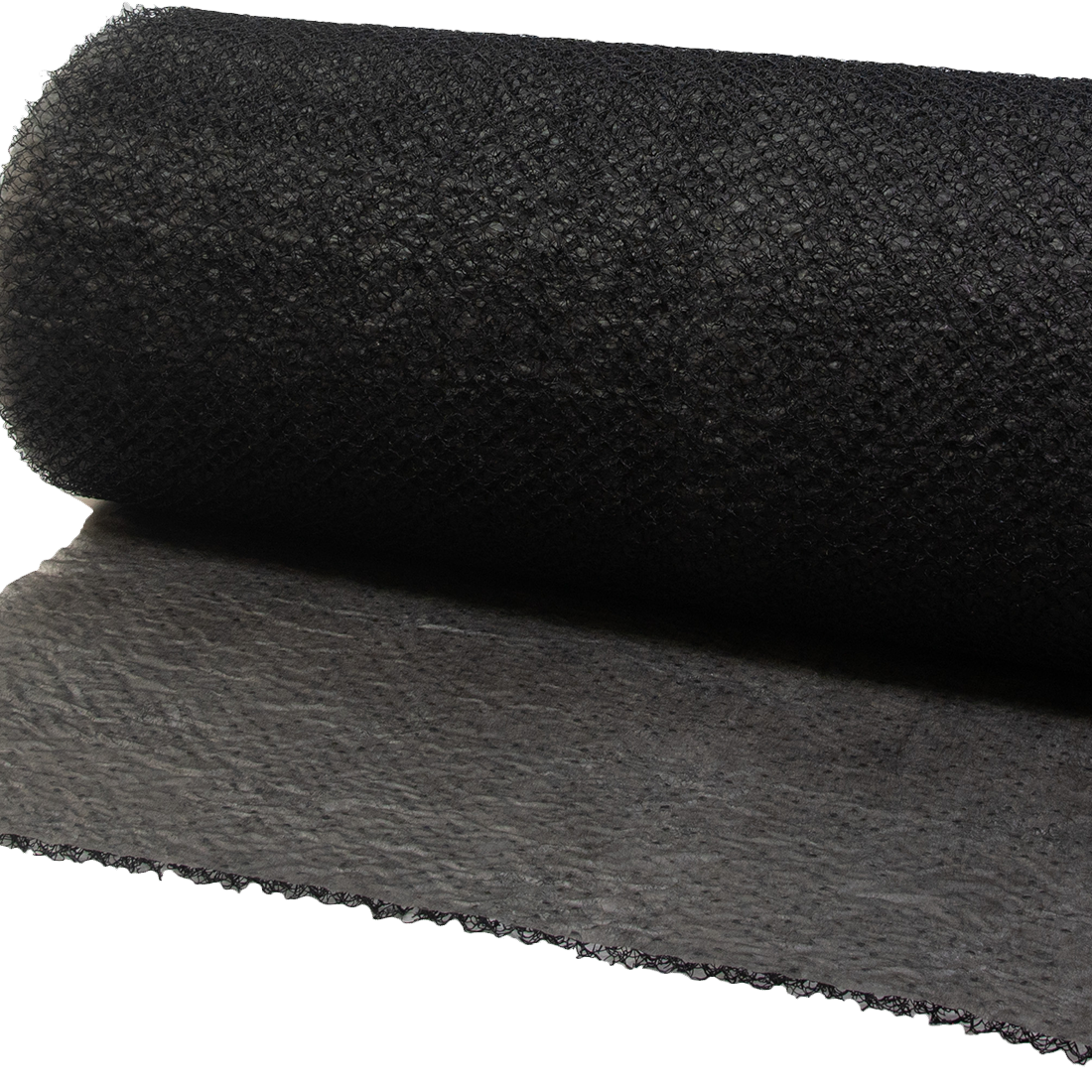

Terra-DRAIN™ EN-18
Prefabricated Entangled Net Multi-Functional Composite Drainage Mat (0.75")
ENTANGLED MESH

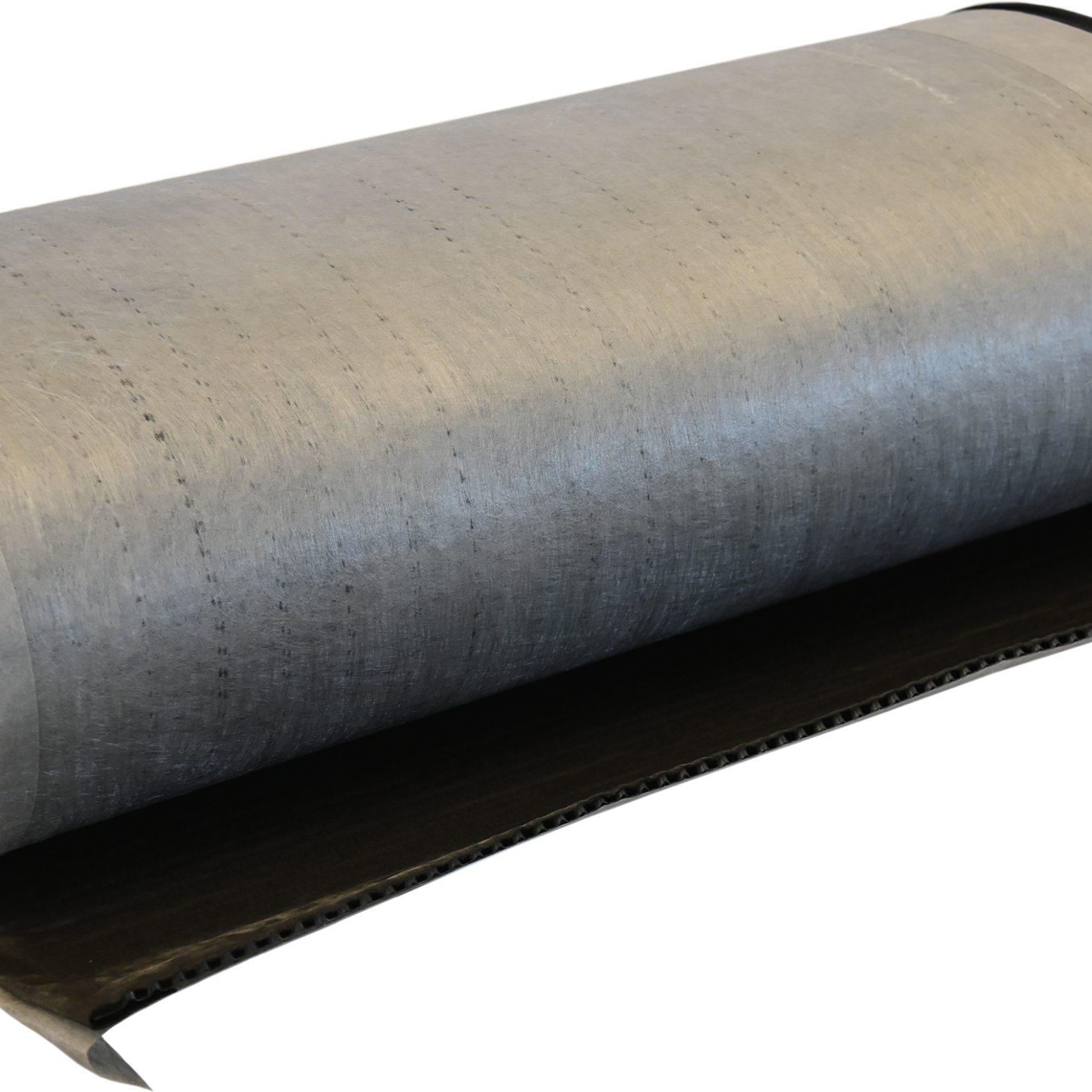

Terra-DRAIN™ DD-10
Perforated Composite Water Retention & Drainage Board (10 mm)

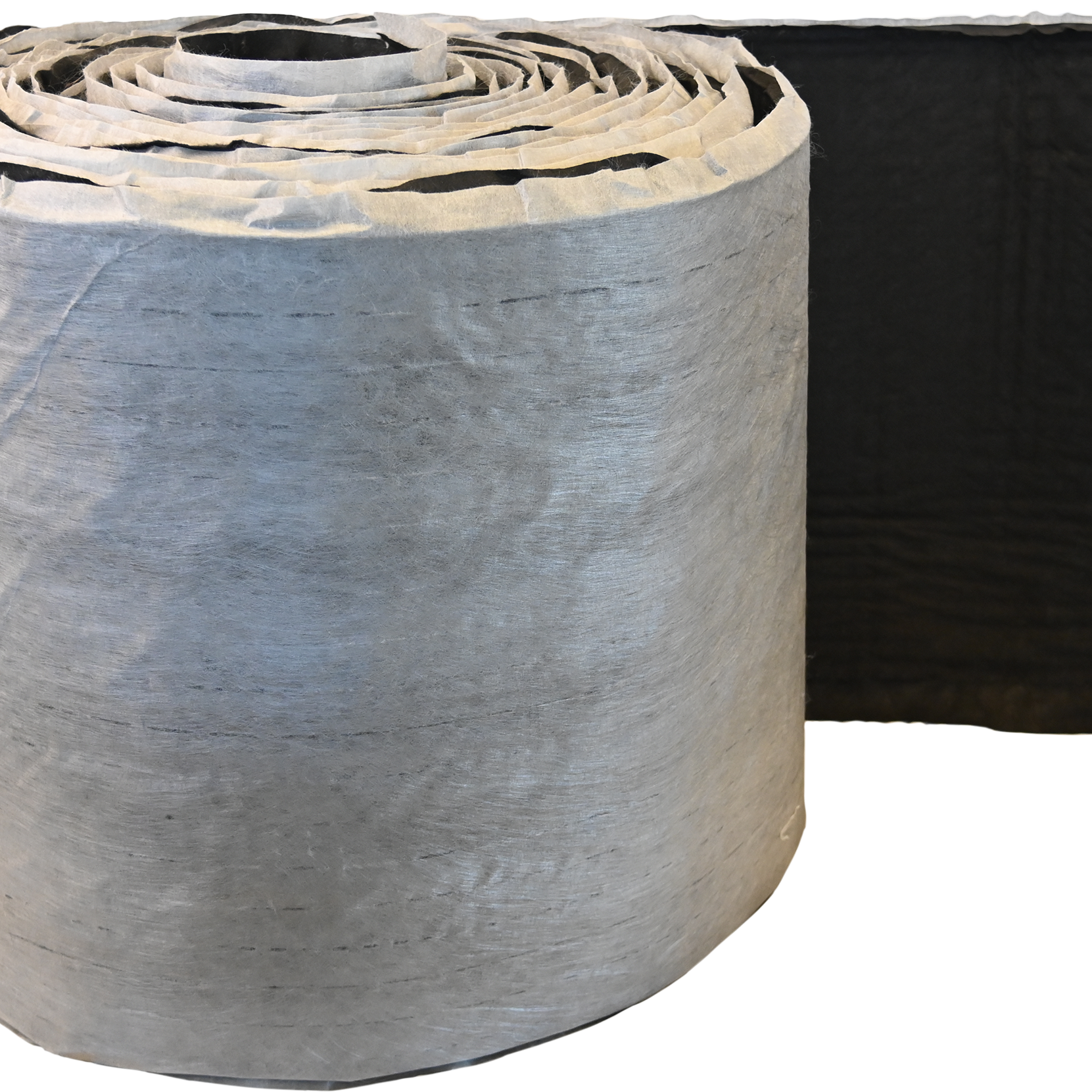

Terra-DRAIN™ DD-25
Perforated Composite Water Retention & Drainage Board (25 mm)
DIMPLED

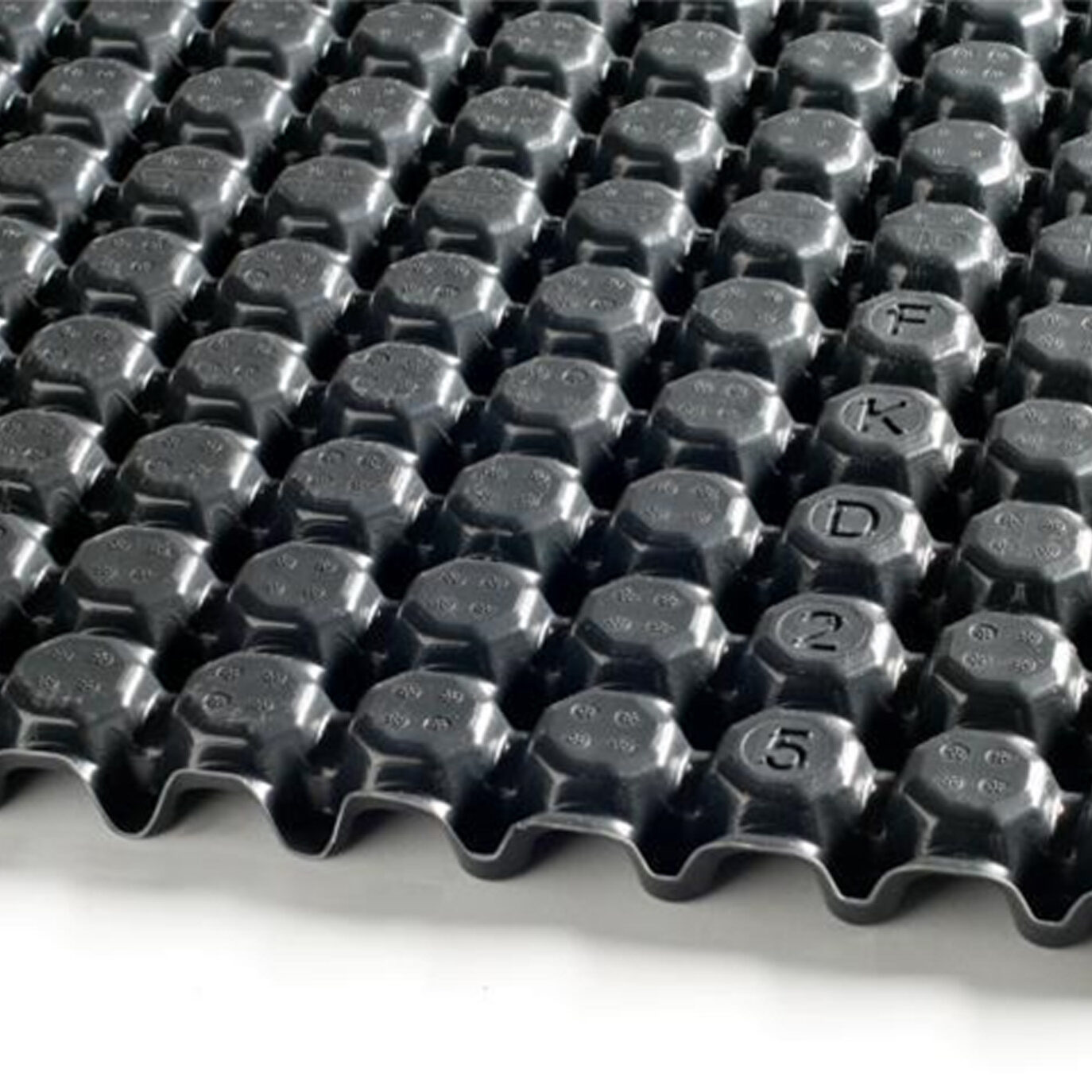

Terra-DRAIN™ P-25
Semi-Rigid Waffled HDPE Retention & Drainage Panel (25 mm)

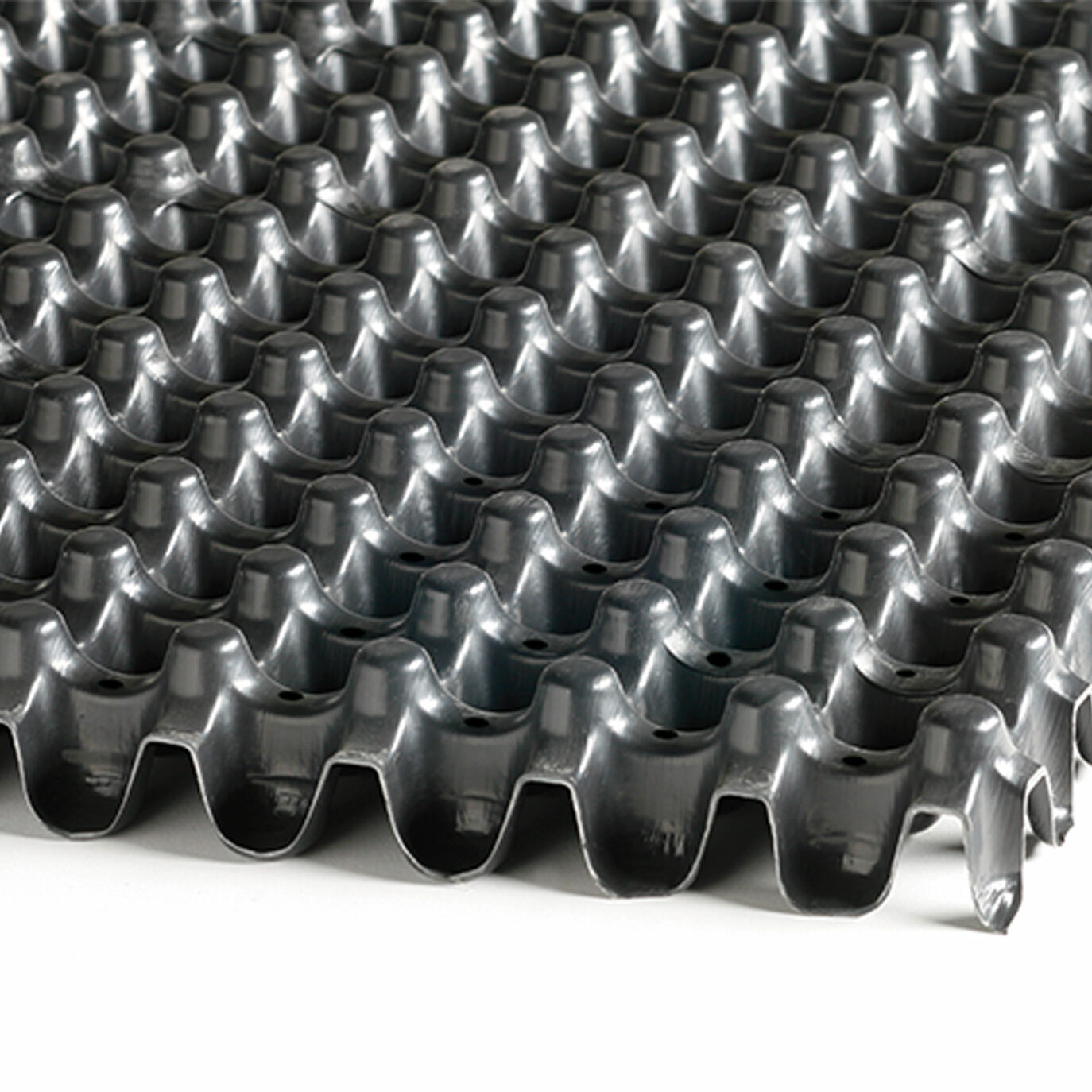

Terra-DRAIN™ P-40
High-Strength Semi-Rigid Waffled HDPE Retention & Drainage Panel (40 mm)

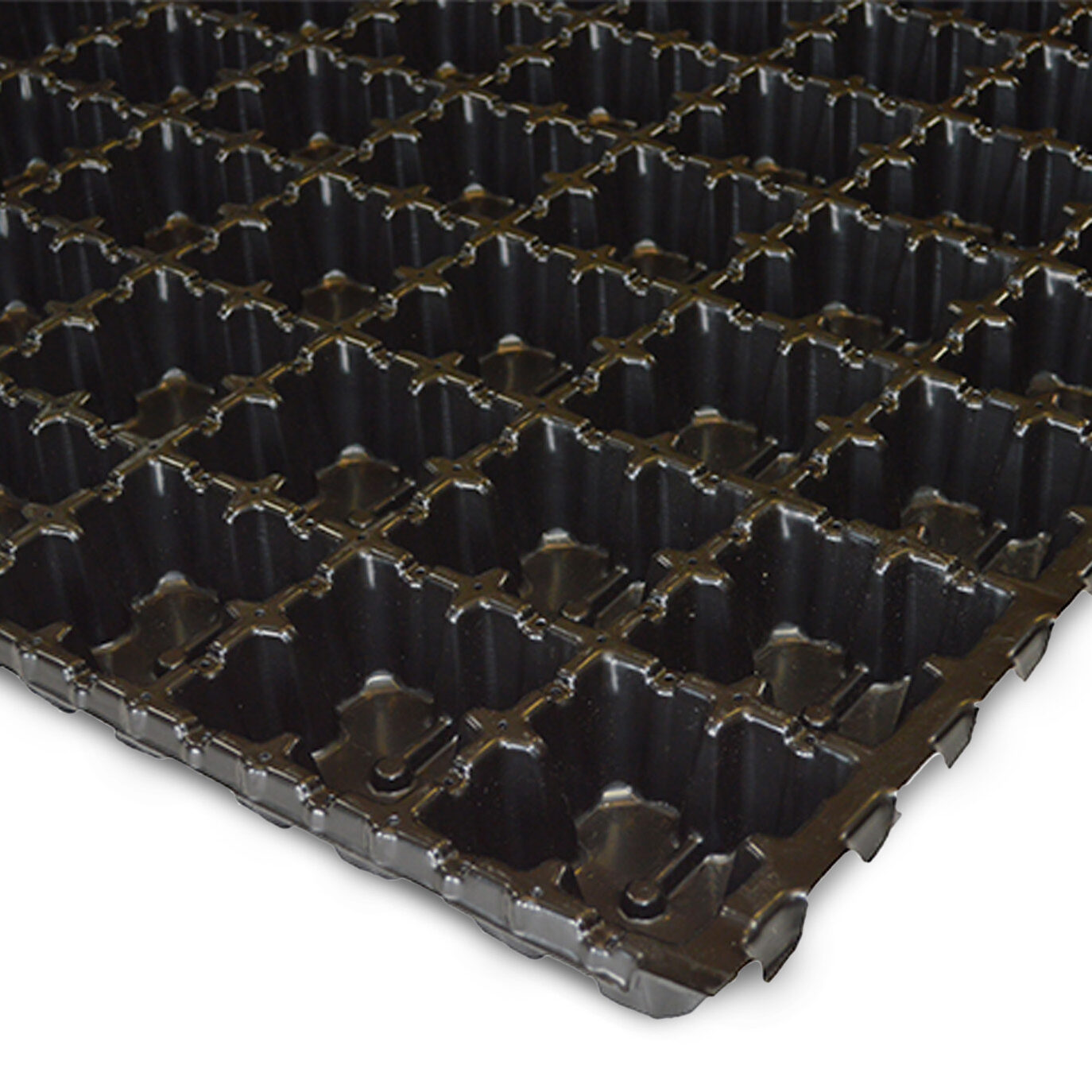

Terra-DRAIN™ P-60
High-Strength Semi-Rigid Waffled HDPE Retention & Drainage Panel (60 mm)
PANEL

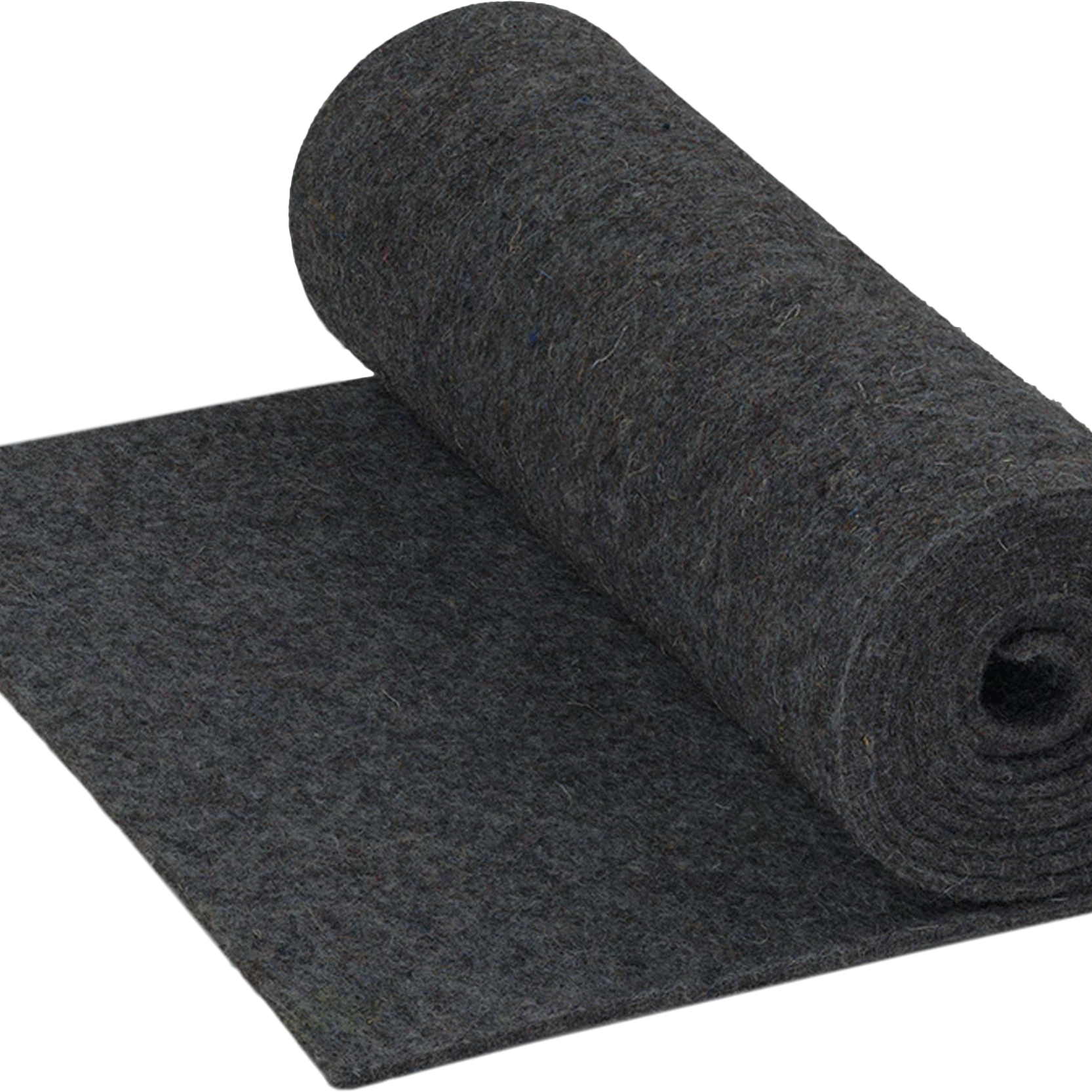

Terra-DRAIN™ NF-10
Mechanically Bonded Needled Felt Water Retention & Drainage Mat (10 mm)
NEEDLED FELT
Root Barrier
Terra-BARRIER™ RB-10
High-Density Polyethylene Root Barrier (10 mil)
Terra-BARRIER™ RB-20
High-Density Polyethylene Root Barrier (20 mil)

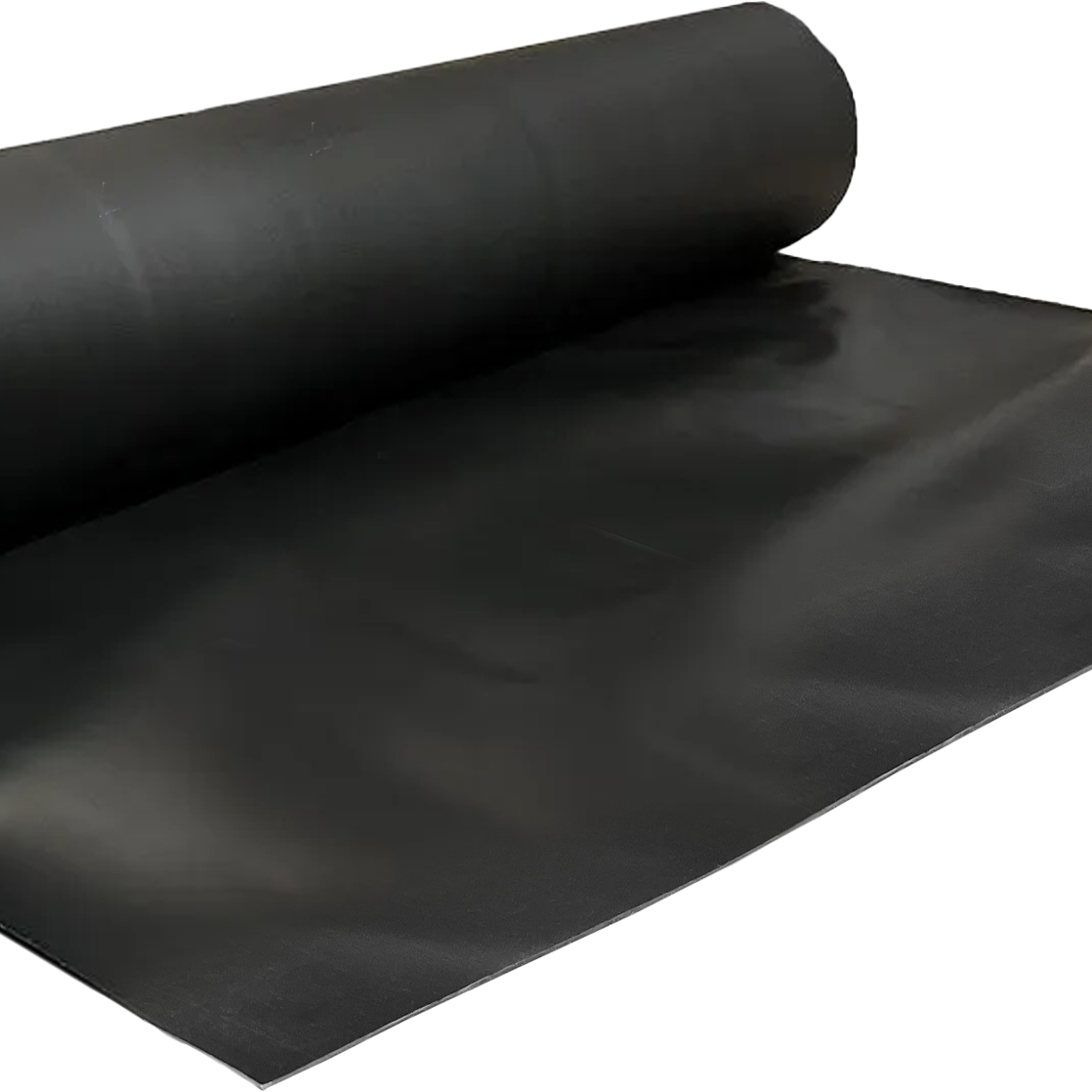

Terra-BARRIER™ RB-30
High-Density Polyethylene Root Barrier (30 mil)
Terra-BARRIER™ RB-40
High-Density Polyethylene Root Barrier (40 mil)

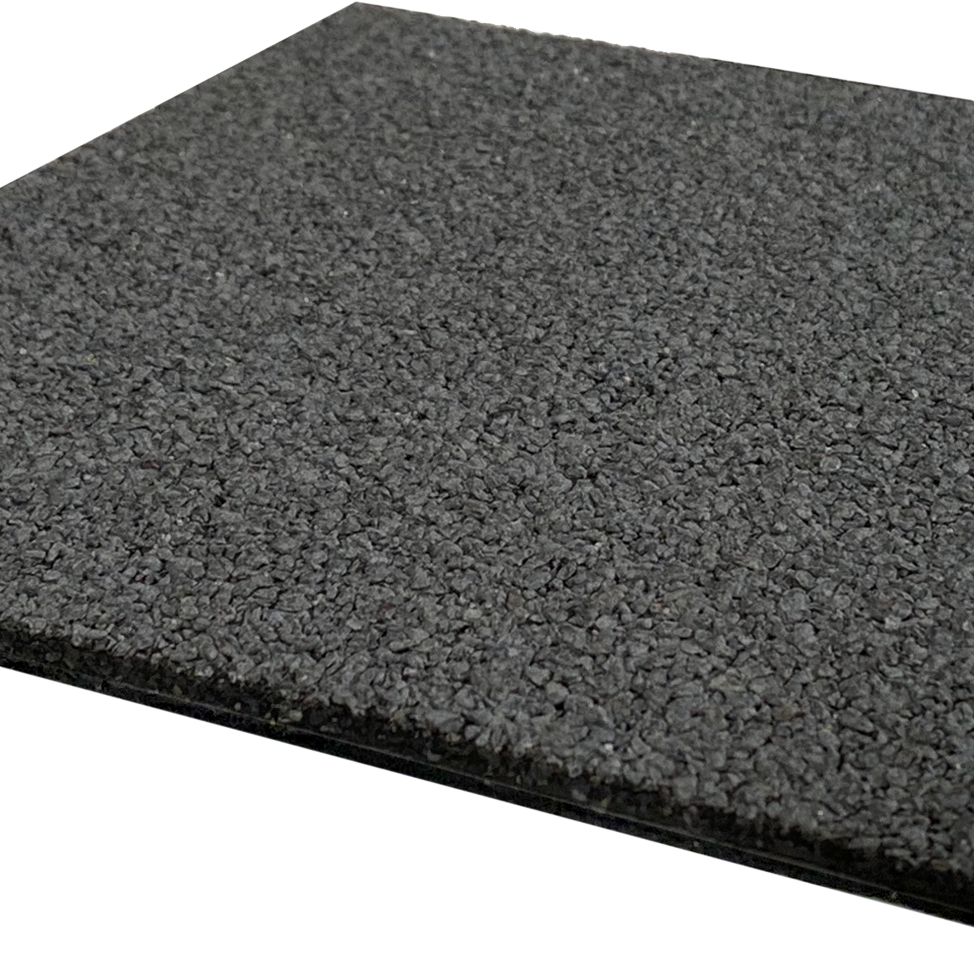

Terra-BARRIER™ RB Sheet
Heavy-Duty Polyester Reinforced Granular Rubberized Asphalt Sheet with Root Protection

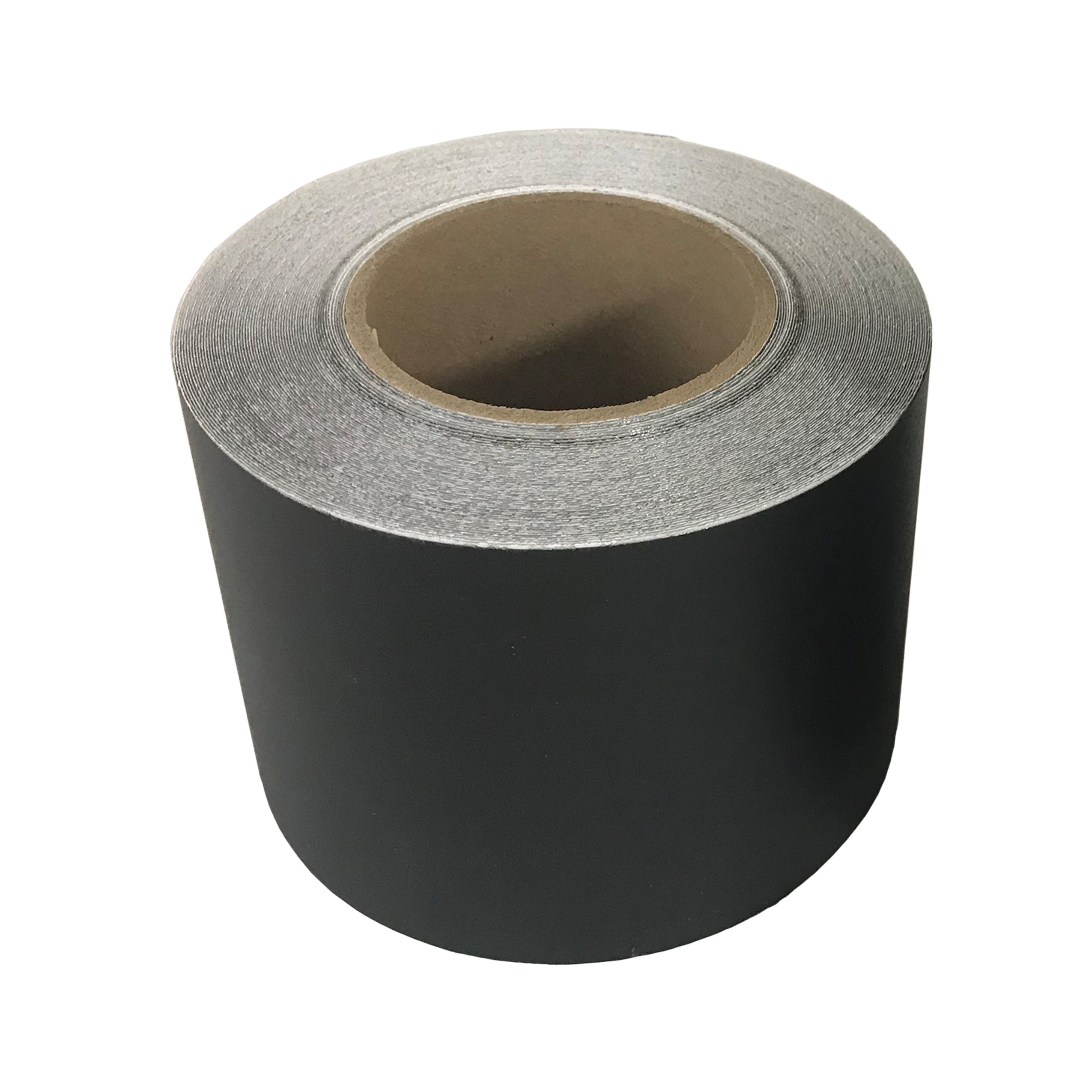

Terra-BARRIER™ Seam Tape
Single-Sided Root Barrier Seam Tape (25 mil)

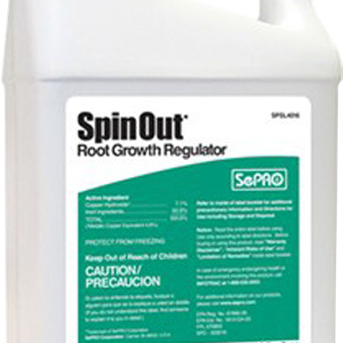

Spinout® Root Growth Regulator
High-Density Polyethylene Root Barrier (30 mil)
ROOT PROTECTION
Featured Roofscapes Projects

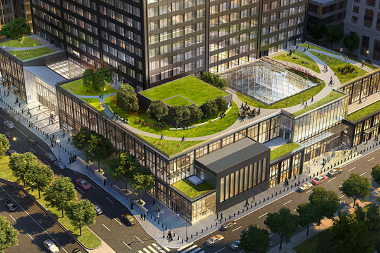

Willis Tower
Chicago, IL
Job Size: 87,391 sq ft
Building Owner: Blackstone Group
Roofing Contractor: Kedmont
Product System: RAM Tough 250DM Waterproofing System

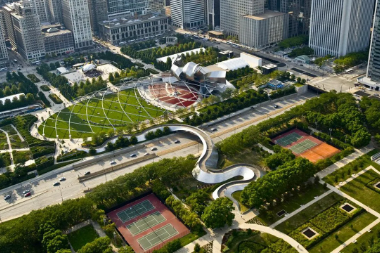

Millennium Park
Chicago, IL
Job Size: 1,067,220 sq ft
Architects: McDonough Associates
Contractor: Kedmont Waterproofing Company, Inc
Product System: RAM Tough 250DM Waterproofing System

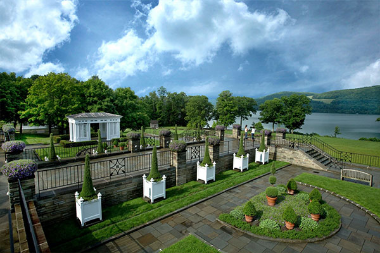

Fenimore Art Museum
Cooperstown, NY
Job Size: 38,100 sq ft
Architects: Hardy Holzman Pfeiffer Assoc.
Contractor: Driscoll Masonry Company
Consultant: James R. Gainfort, AIA
Product System: RAM Tough 250DM Waterproofing System

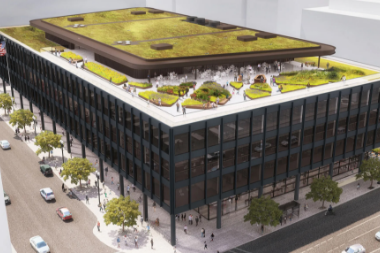

MLKJr. Memorial Library
Washington, D.C.
Job Size: 78,000 sq. ft.
Architect: OTJ Architects, Mecanoo
Contractor: HRGM Corporation
Product System: RAM Tough 250DM Waterproofing System, Barrett EcoLine
