Prefabricated Entangled Net Composite Drainage Mat (0.45″)

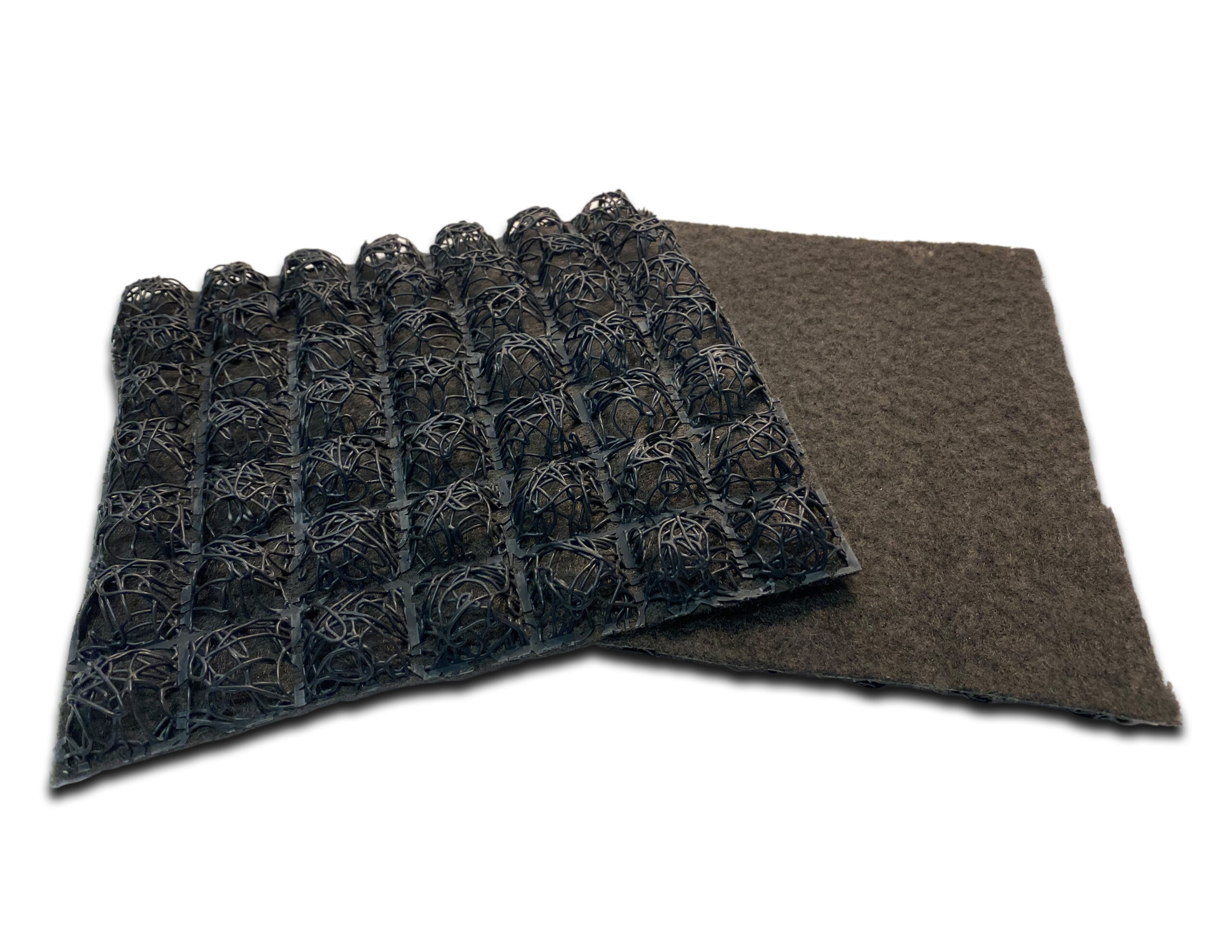

RamDrain EN 36R is an entangled net prefabricated composite drain 0.45-inches thick, “zig-zag” geometric patterned core, drainage mat with a layer of non-woven geotextile on both front and back of the product.





RamDrain EN 36R is an entangled net prefabricated composite drain 0.45-inches thick, “zig-zag” geometric patterned core, drainage mat with a layer of non-woven geotextile on both front and back of the product. RamDrain EN 36R has a 3-inch (76.2 mm) fabric flange beyond the core to provide overlaps with adjacent drainage courses.



USES:

RamDrain EN 36R is designed to eliminate hydrostatic pressure for plazas decks, foundation walls, balconies, and planters in both horizontal and vertical applications.



COVERAGE:

400 sq. ft.



PACKAGING:

  • 48″ X 100′

  • 8 rolls per pallet

  • 56 lbs. per roll
