High-Strength Semi-Rigid Waffled HDPE Retention & Drainage Panel (60 mm)

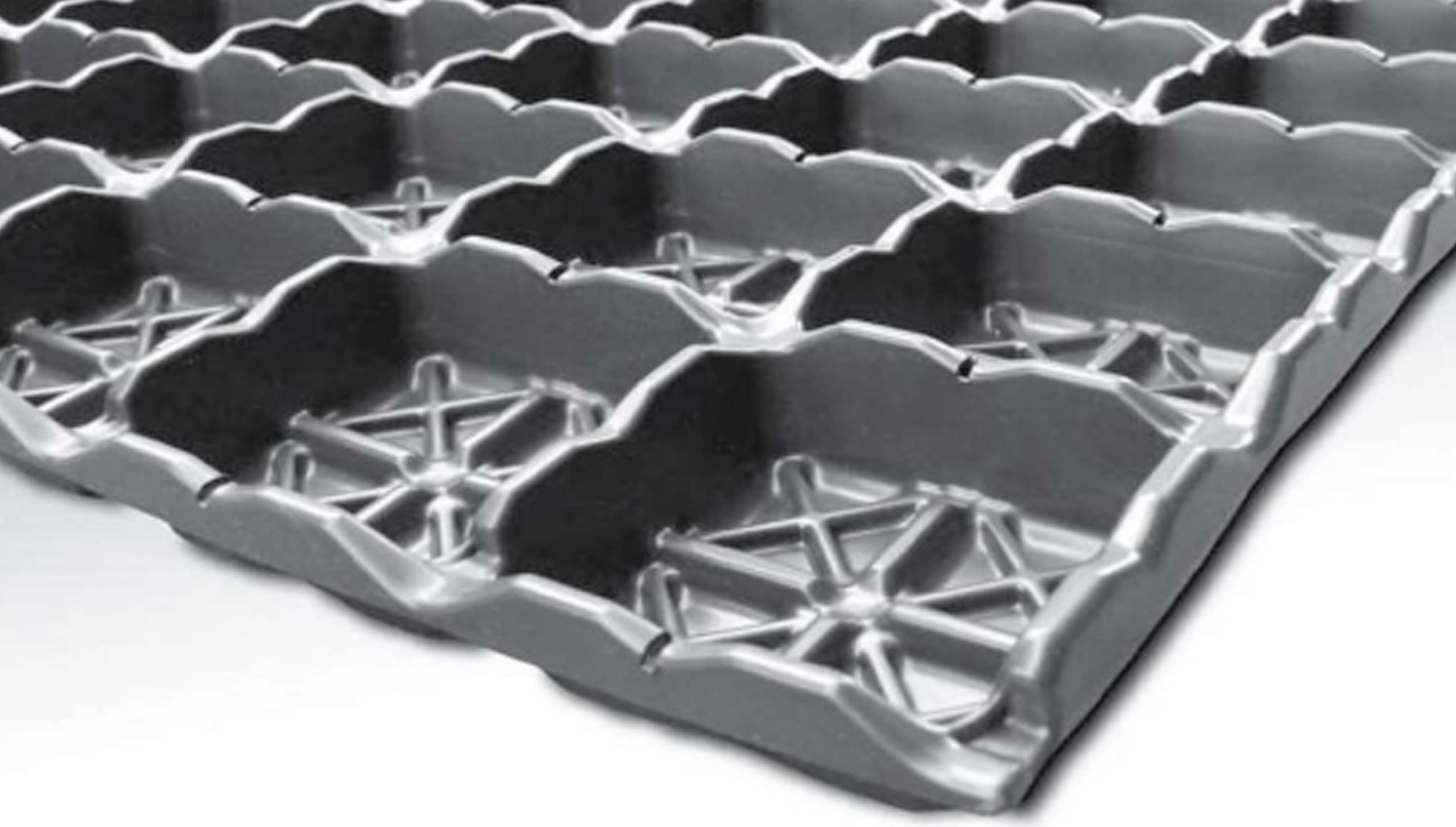

Terra-DRAIN™ P-60 (Panel) is a 2.4” (60 mm) thick, semi-rigid, waffled HDPE sheet designed to retain water within pockets on the top side for vegetation while channeling surplus water through its bottom-sided canal system for secure drainage. It has drill holes to drainage channels for diffusion and irrigation.
Terra-DRAIN™ P-60 (Panel) is a 2.4” (60 mm) thick, semi-rigid, waffled HDPE sheet designed to retain water within pockets on the top side for vegetation while channeling surplus water through its bottom-sided canal system for secure drainage. It has drill holes to drainage channels for diffusion and irrigation.
Terra-DRAIN™ P-60 allows for the incorporation of a complete array of zone-appropriate plantings, including shrubs and trees, in a greater than 12” depth assembly.
FEATURES:
-
Is a high-density plastic panel that retains water within pockets on the upper side, making water available to vegetation.
-
Has drill holes to drainage channels for diffusion and irrigation.
-
Channels surplus water through its bottom-sided canal system for secure drainage.
-
Allows for the incorporation of a complete array of zone appropriate drought tolerant plantings; in a greater than 12″ depth assembly.
-
Transfers loads uniformly to the substructure via large contact areas.
USES:
-
Intensive green and vegetative roofs with zone-appropriate plantings, including shrubs and trees
-
High load capacity systems that harvest stormwater
-
Unfilled installation under intensive green roofs with substrate height up to 400 mm
-
Protected membrane roofs
-
Inverted roof membrane applications (IRMA)
INSTALLATION:
-
Butt boards tight together
-
Cover boards with overburden immediately to protect from UV rays & wind uplift
