HyppoCoat 100

HYBRID POLYUREA/POLYURETHANE GREEN CONCRETE WATERPROOFING MEMBRANE

  • TECHNOLOGY

    Hybrid Polyurea/Polyurethane

  • MATERIAL

    Modified Urethane

  • APPLICATION

    Fluid Applied

  • INSTALLATION

    Single Component

HyppoCoat GC (1st Coat)

HyppoCoat GC (1st Coat)

HyppoCoat GC (2nd Coat)

HyppoCoat GC (2nd Coat)

DESCRIPTION

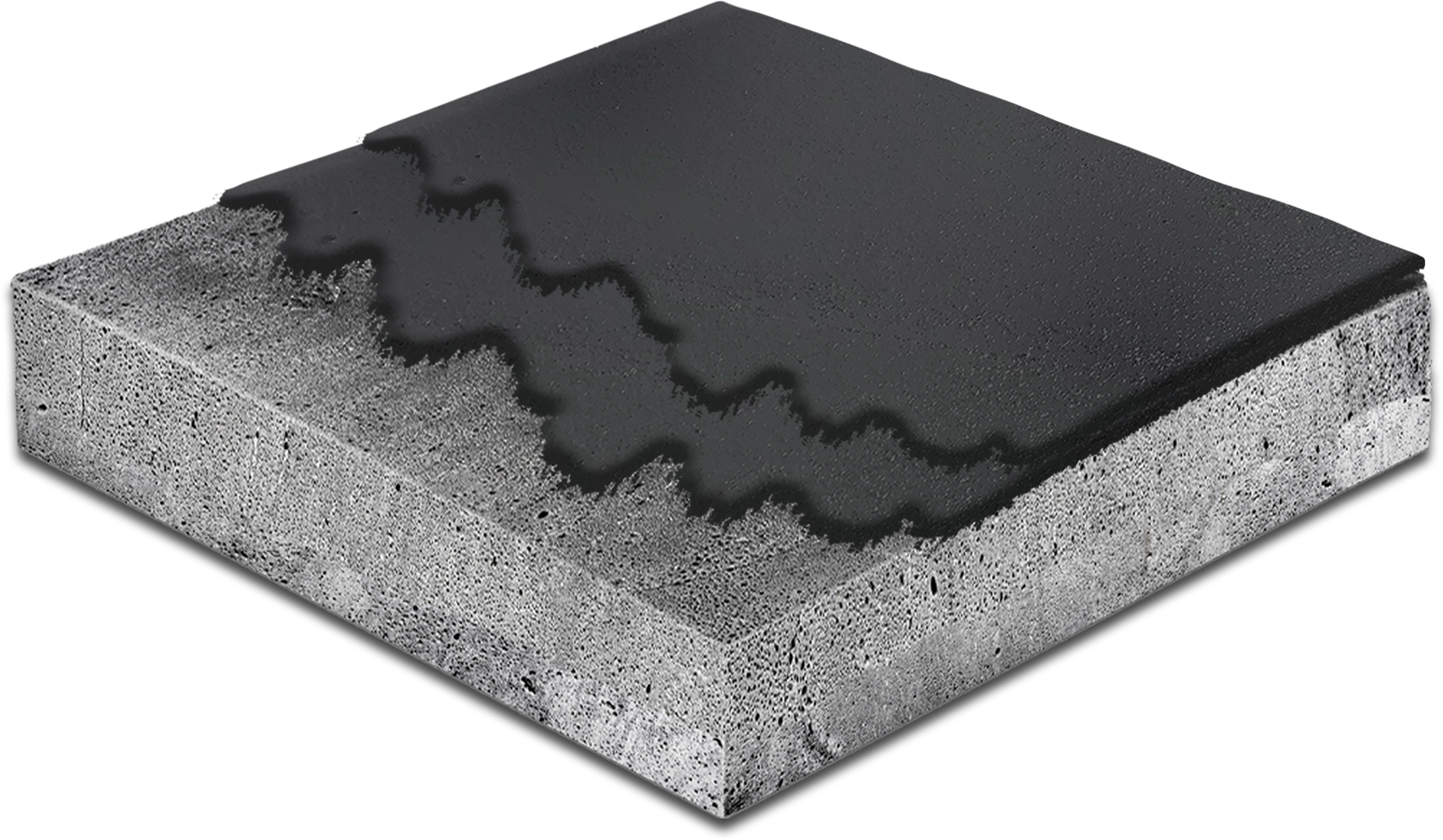

HyppoCoat GC (Green Concrete) is a user-friendly, high solids, single component, liquid applied membrane for cured or green concrete. The system uses two coats of a modified urethane coating and protection board to create an elastomeric system designed to expand and contract with normal structural movements.



HyppoCoat GC is easy to use and can be applied immediately after green concrete forms have been removed, providing a quick return-to-service window during application. It also acts as an aggressive barrier against harsh chemicals, abrasive wear, and heavy impact.

HyppoCoat GC-H

HORIZONTAL WATERPROOFING SYSTEM

DETAILS

PROPERTIESMEASUREMENTTEST METHOD
Hardness (Shore A)50 ± 5ASTM D-2240
Tear Resistance40 ± 20 pliASTM D-624
Tensile Strength (psi)350 ± 50 psiASTM D-412
Elongation (%)300 ± 50%ASTM D-412
Relative Density1.32-
Solids - Weight (%)92 ± 3%ASTM D-2369
Solids - Volume (%)90 ± 3%ASTM D-2697
Viscosity (@ 80°F)5,000 ± 2,000 cps-
Service Temperature-25°F to 200°F-
VOC0.83 lb/galASTM D-2369-81

HyppoCoat GC-V

VERTICAL WATERPROOFING SYSTEM

DETAILS

PROPERTIESMEASUREMENTTEST METHOD
Hardness (Shore A)45 ± 5ASTM D-2240
Tear Resistance35 ± 10 pliASTM D-624
Tensile Strength (psi)350 ± 50 psiASTM D-412
Elongation (%)300 ± 50%ASTM D-412
Relative Density1.23-
Solids - Weight (%)92 ± 3%ASTM D-2369
Solids - Volume (%)90 ± 3%ASTM D-2697
Viscosity (@ 80°F)40,000 ± 20,000 cps-
Service Temperature-25°F to 200°F-
VOC0.83 lb/galASTM D-2369-81
